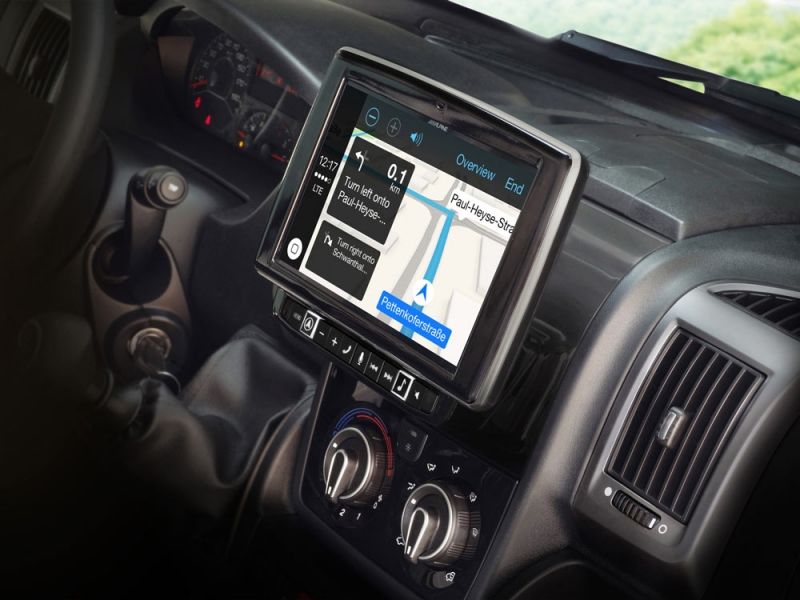

Designed for Fiat Ducato 3 and related caravans
The i902D-DU is exclusively designed for the Fiat Ducato 3 (Type 250/251 model year 2006 and newer including 2011 and 2014 facelifts), Citroen Jumper 2 and the Peugeot Boxer 2. It is compatible with vehicles with 1DIN radio or radio preparation. Installation is simple and does not require any modification of your dashboard. If your camper has a 2DIN radio or navigation installed, you can still upgrade to the i902D-DU, however a few additional parts are required.
Easy to reach from the driver’s seat
Accessibility is an important factor especially on long trips when you often change radio stations or change navigation settings. The Alpine Style system is designed in an off-set configuration from the dash – bringing it closer to the driver to be easily reached without leaning forward. We included large control buttons below the screen for easy access of the main sources, volume, telephone and more.
Extra large 23cm (9-inch) touch screen
The heart of the system is a huge 23cm touch screen display – in fact, it is the same size than an Apple iPad® display. This makes it very easy to see navigation maps, as well as numbers and text on the screen while you drive. Of course this contributes to driving safety as well – less time looking at your screen means more time looking at the road. On-screen buttons appear very large as well, which makes this product very user friendly
Steering wheel remote buttons
If your Ducato is equipped with control buttons on the steering wheel, you can use them with the i902D-DU as well. The Alpine Style system is fully connected to the vehicle electronics and accepts all steering controls such as volume control, telephone, voice control and audio mute. This is yet another feature that contributes to comfort and driving safety in your mobile-home.
Beautifully designed
The display frame of the i902D-DU’s monitor is finished in high-gloss black paint and includes a dark chrome coloured frame to make it blend perfectly into your Ducato dashboard. It almost appears free-floating by its off-set design. We even included the Bluetooth hands-free microphone in the display housing.
Easy camera access
The rear-view camera (if equipped) activates automatically when reversing. However, you may want to manually activate the camera on the highway to check on the bicycles attached to the back of your mobile-home or to ensure that you passed a truck fully after take-over to securely return to your driving lane. Alpine makes it very simple with a direct camera access button right in the source screen.
Connect up to 3 cameras
The optional KCX-C250MC interface even allows the connection of up to 3 cameras, including front and side. Switching between cameras and viewing angle selection can be easily done using the touch screen. Alpine offers a wide range of cameras, including cutting-edge models with multi-view technology. Camera cable extensions are available as well.
Direct Online Navigation Access
The i902D-DU has a large navigation button on the right key area. When pushed, the Alpine system automatically opens the navigation app - this works both with Apple CarPlay and Android Auto
GPS and Glonass Compatible
More satellites equal higher navigation accuracy and a faster positioning fix. This Alpine product is compatible with GPS satellite signals and can also receive positioning data from Glonass satellites. This brings big advantages especially in an urban environment with many tall buildings and when driving next to high mountains. When using navigation with Apple CarPlay and Android Auto you can also benefit from this new improved compatibility.
Online Navigation with Apple CarPlay
When you’re driving, Maps helps you find the way to your destination with turn-by-turn spoken directions and new, easier-to-read visuals. When a turn is coming up, the view zooms in to show you exactly where to go. Along the way, large signs and arrows guide you in the right direction and let you know how long it’s going to take to get there. Looking for a gas station, restaurant, or coffee shop along your route? New buttons on the navigation screen help you quickly find the closest places and estimate how much time the detour will add to your trip. If you push the navigation hard-key on your Alpine unit twice, you active Apple CarPlay navigation without going through many menu points.
Online Navigation with Android Auto
Let Google Maps lead the way. It’s easy to get where you’re going with free voice-guided navigation, live traffic information, lane guidance, and more. Whether on your phone screen or on your car display, Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road. The i902D-DU works seamlessly with Android Auto and Google maps. Android Auto can even access the Alpine navigation antenna for highest positioning accuracy.
Big Screen Entertainment
The Alpine system allows you to enjoy movies, music videos or TV shows from many different sources, such as DVDs from the optional optical drive, USB sticks, the latest smartphones with HDMI output or portable video devices (optional cables or adapters are required). You can also connect your iPod or iPhone to enjoy your video content on the high-resolution 9-inch display. For driving safety, the video playback feature is only available if the vehicle is not in motion.
Works with Apple CarPlay
The innovative i902D-DU with Apple CarPlay compatibility brings you a smarter way to use your iPhone on the road. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience. Simply connect your CarPlay enabled iPhone to the USB port of your Alpine and you are ready to go.
Works with Android Auto
Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it's designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they're needed. Both Apple CarPlay and Android Auto can access the navigation antenna of the i902D-DU for improved accuracy when using the navi apps.
Built-in Bluetooth® Technology
The built-in Bluetooth® module allows wireless connection of a mobile phone for hands-free communication, while frequent software updates ensure full compatibility with the latest phones. A very intuitive user interface makes operation extremely easy. Bluetooth® also enables audio streaming from the phone: audio content or even internet radio can be wirelessly enjoyed on the Alpine system.
Connect Your Smartphone
The Alpine system is fully compatible with the latest smartphones such as the iPhone 6S and the Samsung Galaxy S7 Edge. This offers many advantages: you can enjoy digital content stored on your phone such as music or video files, access your phonebook or simply charge your phone. You can even activate Siri and voice-control your iPhone for maximum comfort and driving safety.
DAB/DAB+ Digital Radio
The built-in DAB/DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.
Upgrade to DVB-T Digital TV
Alpine offers several DVB-T digital TV tuner and antenna solutions that can be connected to the i902D-DU. Having several TV channels to choose from is especially useful when you are in long traffic jams. Check out our related product area for more information.
Optional DVD Player
Upgrade your Alpine Infotainment system with DVD and CD playback capability. The DVE-5300 is 1DIN size and can be custom installed in the glove box or any other place. It uses HDMI technology for stunning image quality and can be fully controlled from the touch screen.
Sound Adjustment
The i902D-DU offers extensive sound adjustment options to get the best out of your sound system and to adjust the sound to your taste and preferences, including equalization features, X-over settings and even time correction.
FEATURES
Tuner
- Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
RDS
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
BLUETOOTH®
- Built-in BLUETOOTH® Module
- Wide Band Speech Technology
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Advanced BLUETOOTH® Technology
- Connection: SSP (Simple Secure Pairing) Supported
- Individual Profile Connection Hands Free Phone and Music Streaming
- Phone Book: Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
- Device Name Display
- Auto Answer
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
- DTMF (Touch-Tone) Function
- Signal Strength Indicator
- Battery Level Indicator
- Menu Language Selection: 24 Languages
- Firmware Updatable
- Microphone integrated
Made for iPod® / iPhone®
- Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 7 and 7 Plus, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
- KCU-471i Required (Sold separately)
- Music Playback
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabet Search
- Artwork Display
- Direct Up / Down: Playlist / Artist / Album / Genre / Composer
- M.I.X. (Shuffle) Play: Song, Albums, All
- Repeat
- Battery Charging
Connectivity
- Works with Apple CarPlay (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone)
USB Media Connection
- USB Connection
- Music and Video Playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV Playback
- File / Folder Name Search
- Tag Info Search
- Folder Up / Down
- M.I.X. Random Play
- Repeat
Sound Tuning
- Bass Engine SQ
- Bass Engine™ Pro
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- 2 V High Voltage PreOut
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- Dual HD EQ (9-band Parametric Equalizer front/rear)
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- Customized Sound Setting by Car Type
- MediaXpander HD
- Application Volume Level Setting
- Sound Setting Data Download
- Easy, Step-by-Step Sound Customization
- Alpine TuneIt App ready
General
- Power Output: 4 x 50 W High Power Amplifier
- Advanced Power IC
- Display: 9′′ Capacitive WVGA High Resolution Display
- White LED Backlighting System
- Control Type: Touch, Drag, Flick
- My Favourites Function
- Automatic Setting Change for 2 Users
- High Grade Audiophile Design
- 3 PreOuts (2 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
- AUX-In: 1 A/V AUX Input (RCA)
- Steering Wheel Remote Control Function
- Remote Control Ready
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Rear view Camera Display Automatic Boot-up
- Simple Mode & Info Mode Display Selection
- Visual EQ
- Live Contrast Adjustment
- Menu Language: 24 Languages (for AV / Bluetooth)
- Clock
- Auto Dimmer
- Anti-theft security code
- Firmware Updatable
- Microphone integrate
- Power Antenna Lead
- Remote Turn-On
- HDMI Input (Alpine Special HDMI connector required)
- Engine Start-Stop unaffected
- SWRC Interface Included
- Ready for optional DVD Player DVE-5300

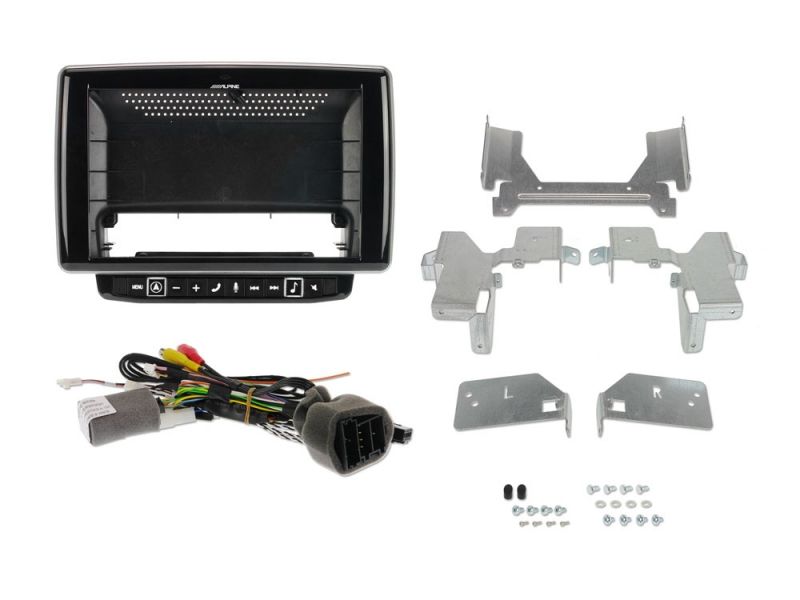

Installation
- Includes installation brackets, wiring harness and SWRC interface for complete installation.
-
Size:2-DIN
-
Screen size:9"
-
Bluetooth:Built-in
-
Key Illumination:White
-
PreOuts:3
-
iPhone/iPod:Adapter required
-
Remote control:IR ready
-
Inputs:USB
Audio/Video
HDMI
Camera
-
Android:Yes
-
FLAC support:Yes
-
SWRC ready:Yes
