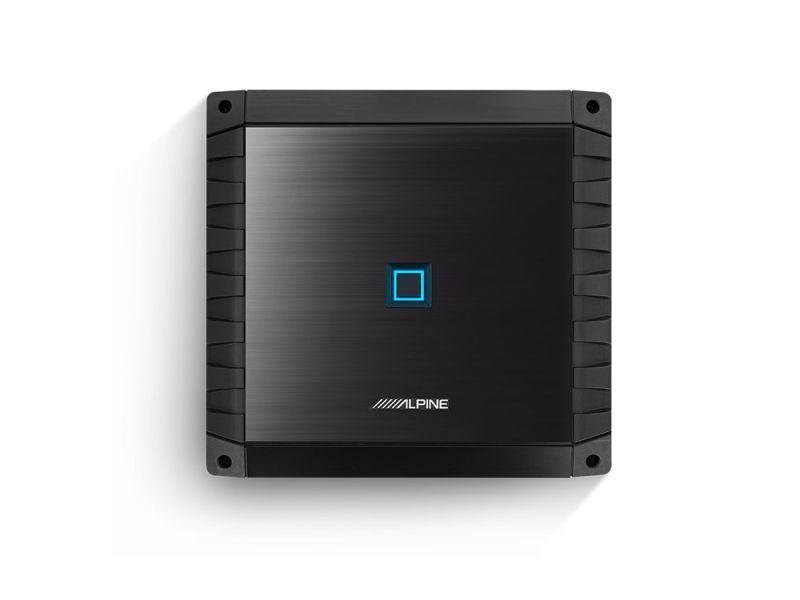

SPECIFICATIONS

Max Power Output Ratings

• Total Max Power: 6000 W

RMS Power Ratings

• Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 600W
• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330W

Sound Tuning

• Crossover: Variable LPF: 50-400Hz (-24dB/oct)
• Bass EQ (+12dB)

Dimensions

• Heat Sink (WxHxD) mm: 220 x 57 x 210

General

• Power Requirements: 14.4 V.DC (11-16V allowable)
• Input Sensitivity (RCA Input): 0.15 - 4.0 V
• Input Sensitivity (Speaker Level Input): 0.4 - 10 V
• Input Impedance: >10k ohms
• Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 7 -400 Hz
• THD+N (10W into 4 Ohms): 0.02 %
• THD+N (10W into 2 Ohms): 0.03 %
• THD+N (Rated Power into 4 Ohms): 0.2 %
• THD+N (Rated Power into 2 Ohms): 0.3 %
• Damping Factor (10W into 4 Ohms at 100Hz): >500
• Signal to Noise (1W into 4 Ohms): >85 dB
• Signal to Noise (Rated Power into 4 Ohms): >105 dB
• Remote Level: -20 to 0 dB
• Weight: 1.5 kg

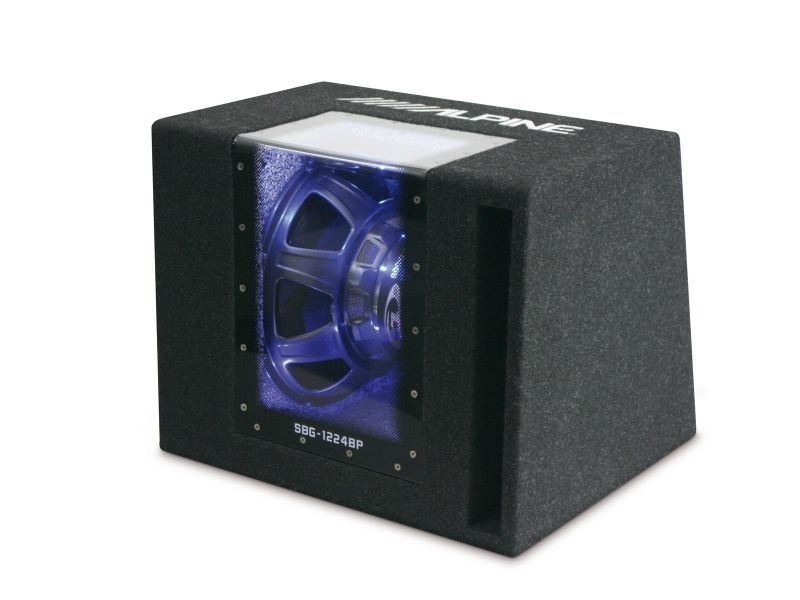

Features Subwoofer Box

• Type-G band pass Subwoofer Box
• 12” Type-G Subwoofer
• Acrylic window with blue illumination
• Peak Power: 800W
• RMS Power: 250W
• Dimensions: 473mm (W) x 380mm (H) x 314/414mm (D)

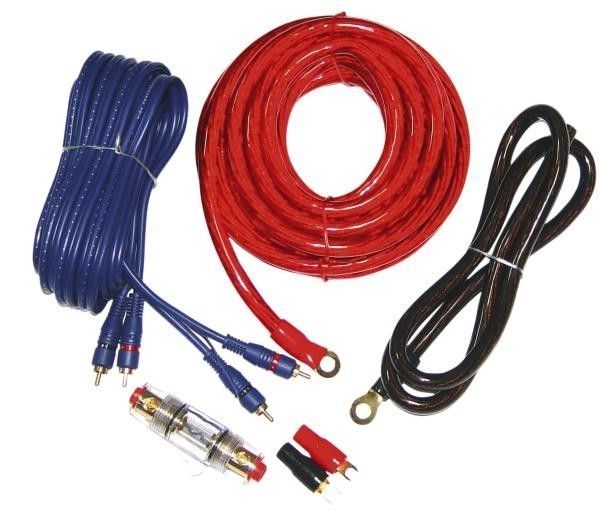

FEATURES CABLE SET

5 m power cable 10 mm² red
1 m power cable 10 mm²
1 x AGU in-line fuse holder gold
1 x 40 A AGU in-line fuse gold
5 m RCA cable / remote cable blue
2 spade terminals
2 ring terminals
