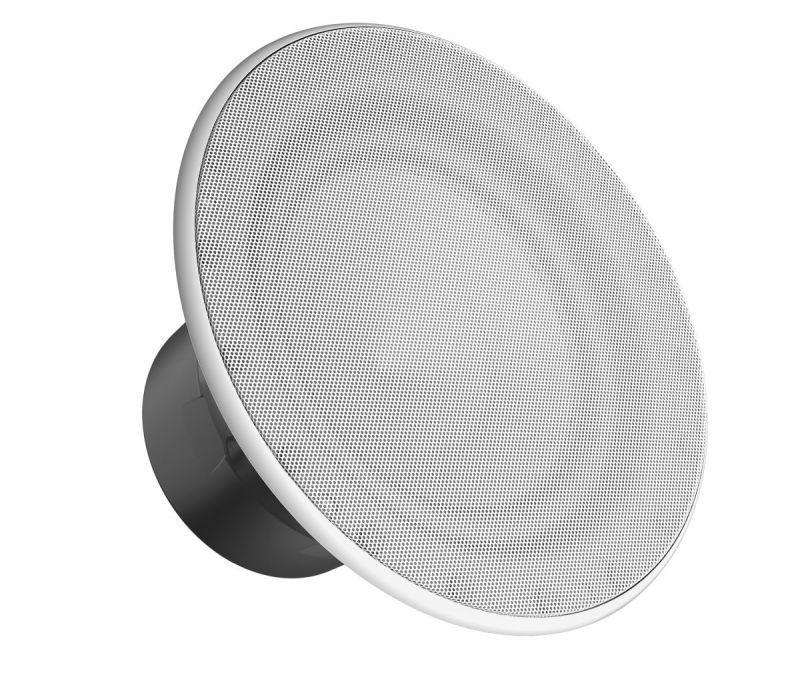

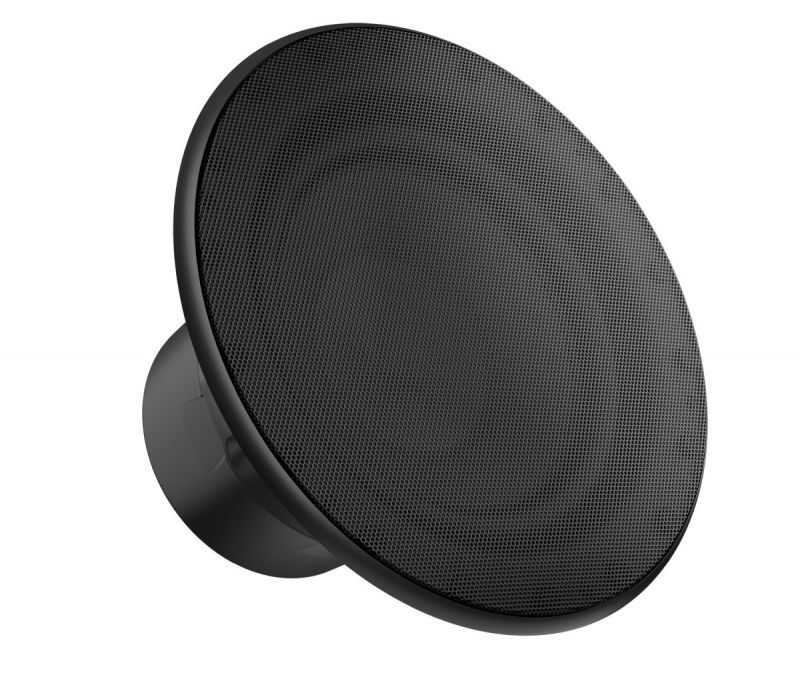

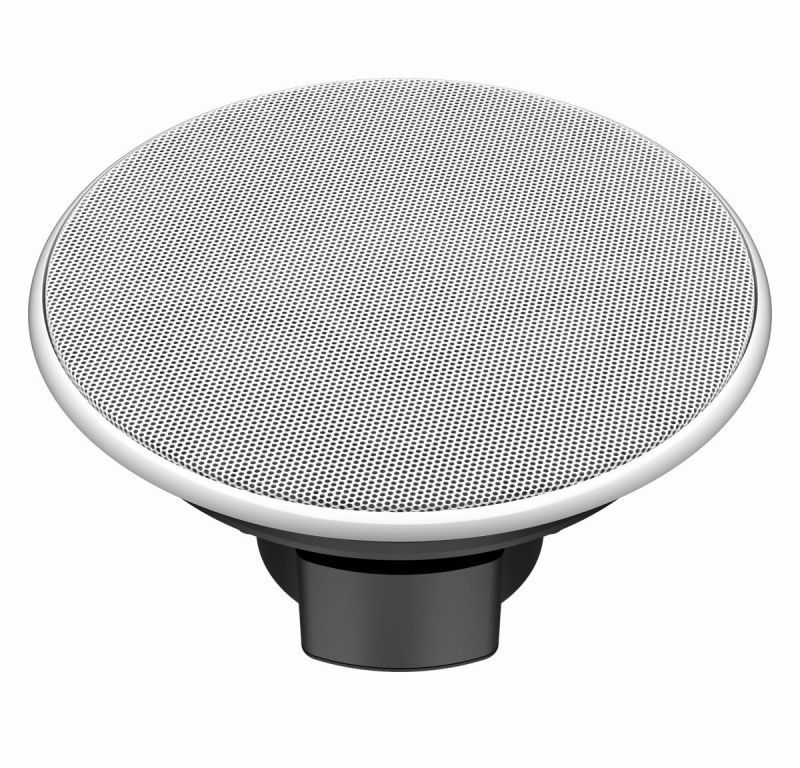

Hertz PORTOFINO 100 S4W Marine Subwoofer
250 (10) mm (in.) | 174 (6.85) mm (in.) | Subwoofer | 500 W | 4 Ohm | Single Voice Coil
The PORTOFINO 100 S4W delivers powerful, refined bass designed to complement the elegance of luxury yachts. Its 10-inch flush-mount design ensures seamless integration into sophisticated marine interiors, while producing deep, controlled low frequencies that enrich every listening experience at sea. Crafted with premium marine-grade materials, it withstands UV rays, salt, and moisture, guaranteeing lasting performance in the harshest conditions. The fine mesh magnetic grille provides a sleek, ultra-low-profile finish, blending perfectly into the yacht’s architecture. For those who expect both uncompromising sound and timeless style, the PORTOFINO 100 S4W redefines marine audio excellence.
- Brand: Hertz
Quick Buy
Technical Specs
| Parameter | Value |
|---|---|
| Size mm (in.) | 250 мм (10") |
| Power Handling - Continuous W | 250 W |
| Power Handling - Peak W | 500 W |
| Impedance Ohm | 4 Ω |
| Depth mm (in.) | 174 мм (6,85") |
| Voice Coil Type | single |
| Тип компонент | SUBWOOFER |
| Voice Coil Ø | 50 мм (2") |
| Magnet size D x d x h mm (in.) | 140 × 60 × 30 мм (5,51 × 2,36 × 1,18") |
| Weight of one component kg (lb.) | 5,1 кг (11,24 lb) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene with UV inhibitors |
| Xmech mm (in.) | 16,30 мм (0,64") |
Electro-acoustic Specs
| Parameter | Value |
| D | 210 мм |
| Xmax | 12,30 мм |
| Re | 2,1 Ω |
| Fs | 43 Hz |
| Le | 0,46 mH |
| Vas | 30,46 l |
| Mms | 75,60 g |
| Cms | 0,18 mm/N |
| BL | 8,30 T·m |
| Qts | 0,60 |
| Qes | 0,63 |
| Qms | 12,30 |
| SPL | 88,5 dB |

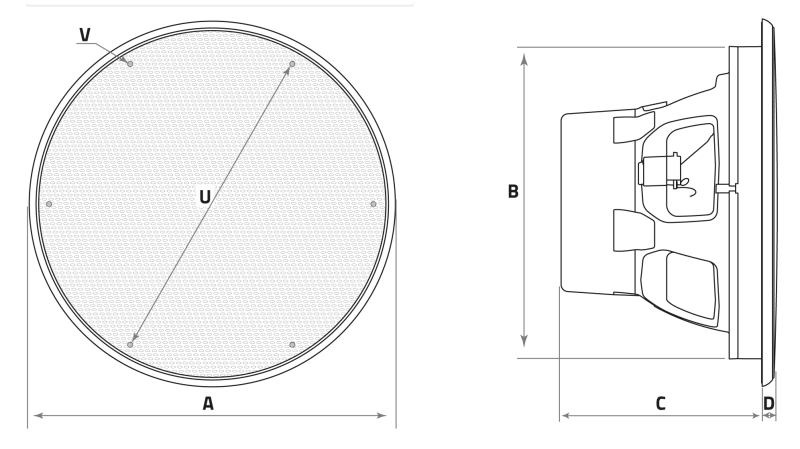

Physical Specs
| A | 319 мм | 12,56" |
| B | 271,3 мм | 10,68" |
| C | 174 мм | 6,85" |
| D | 11,6 мм | 0,46" |
| U | 291 мм | 11,46"* |
| V | 5,5 мм | 0,22" |
-
Design:Subwoofer
-
Max. Power:500 W
-
RMS Power:250 W
-
Sensitivity:88.5 dB/W/m
-
Mounting Depth:174 mm
