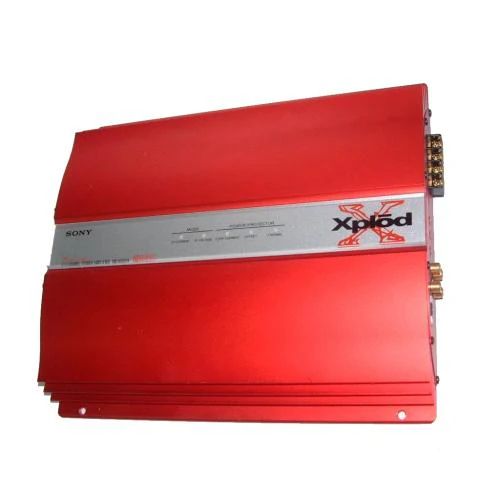

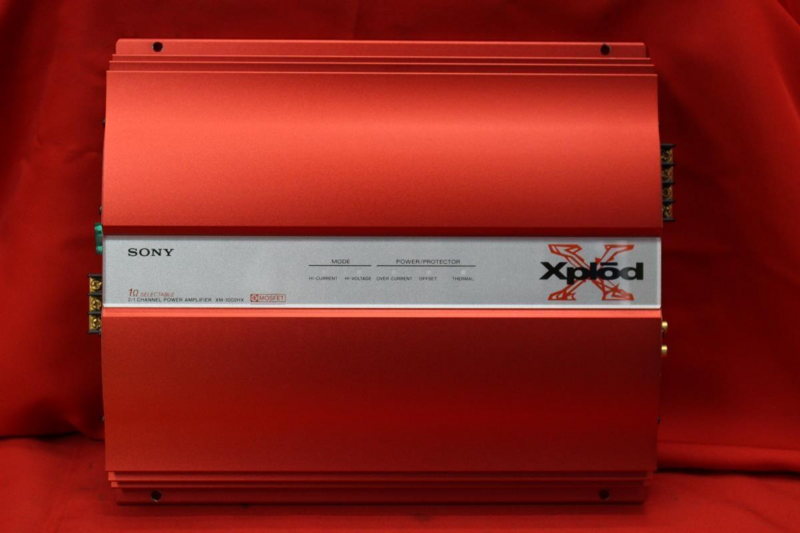

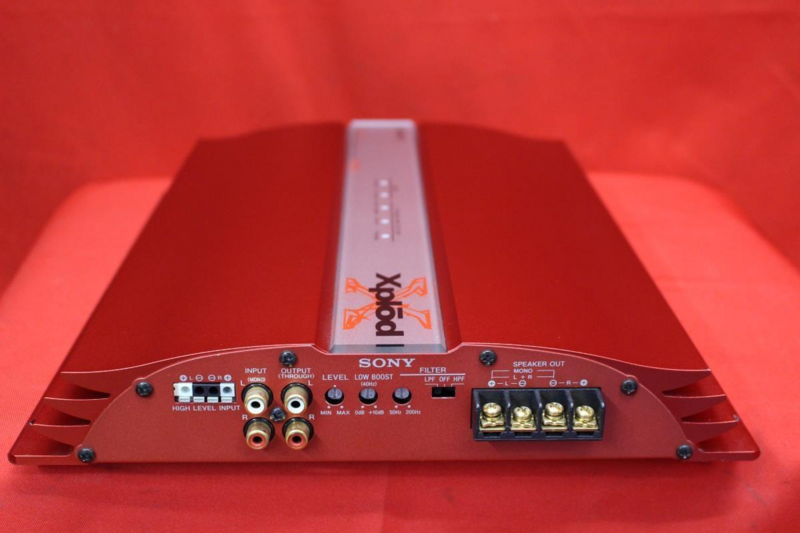

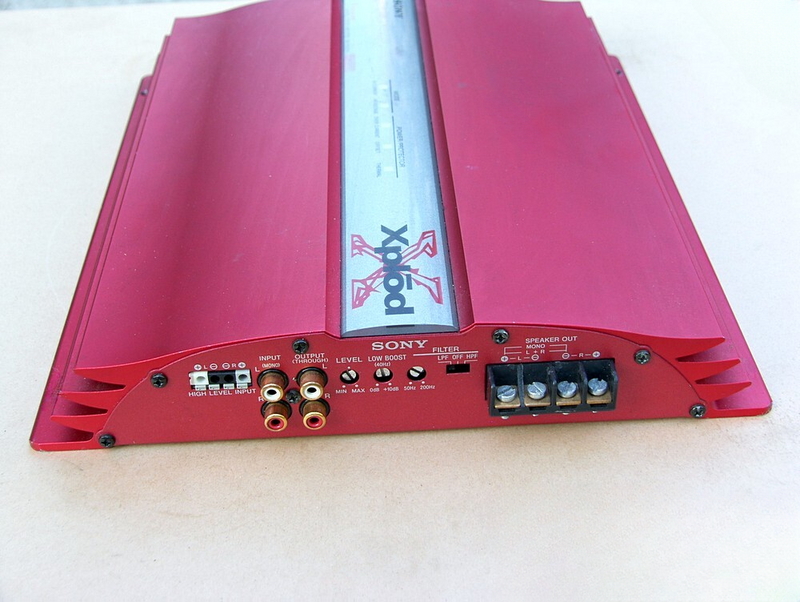

Sony XM-1002HX

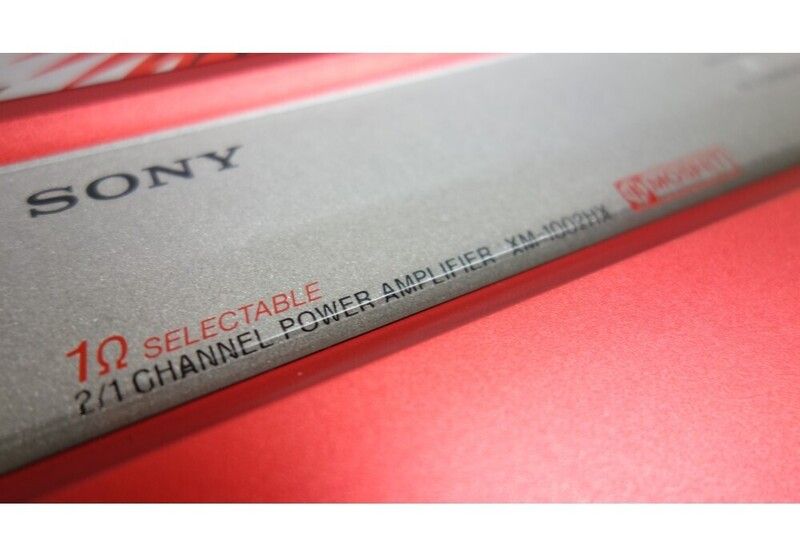

2/1-Channel (stereo or bridged mono)
Max Power (Bridged 4-Ohm): 580W
Max Power (Stereo 2-Ohm): 300W per channel
- Brand: Sony
Quick Buy
Just 4 fields to fill in
| Specification | Details |
|---|---|
| Channels | 2/1-Channel (stereo or bridged mono) |

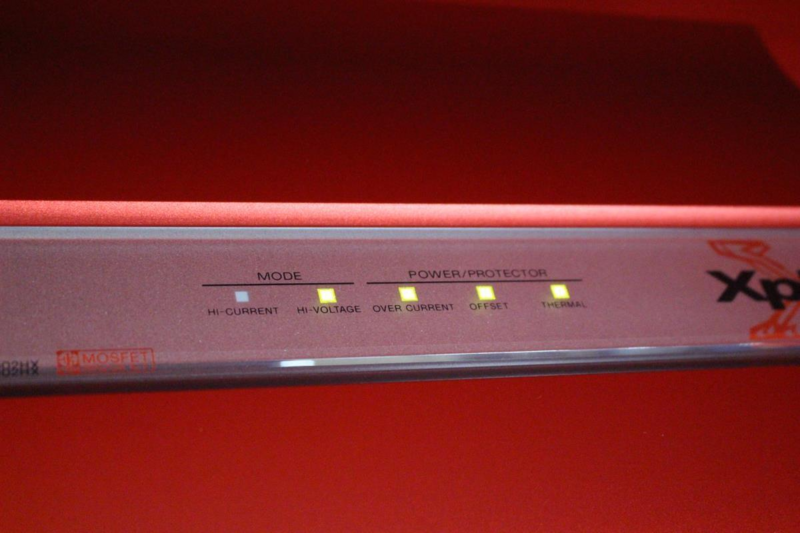

| RMS Power Output | 100 W x 2 Ch at 4 Ohms (High-Voltage Mode) |
| 140 W x 2 Ch into 2 Ohms | |
| 280 W x 1 Ch bridged at 4 Ohms (High-Voltage Mode) | |
| Max Power Output | 300 W x 2 Ch |
| 580 W x 1 Ch bridged | |
| Frequency Response | 5 Hz–50 kHz |
| Total Harmonic Distortion (THD) | 0.005% (at full output 20 Hz–20 kHz) |
| Signal-to-Noise Ratio | >104 dB |
| Built-in Filters | Variable High/Low-Pass Filter: 50 Hz–200 Hz (-12dB/Oct.) |
| Bass Boost | 0~+10 dB at 40 Hz (Subwoofer Low Bass Boost) |

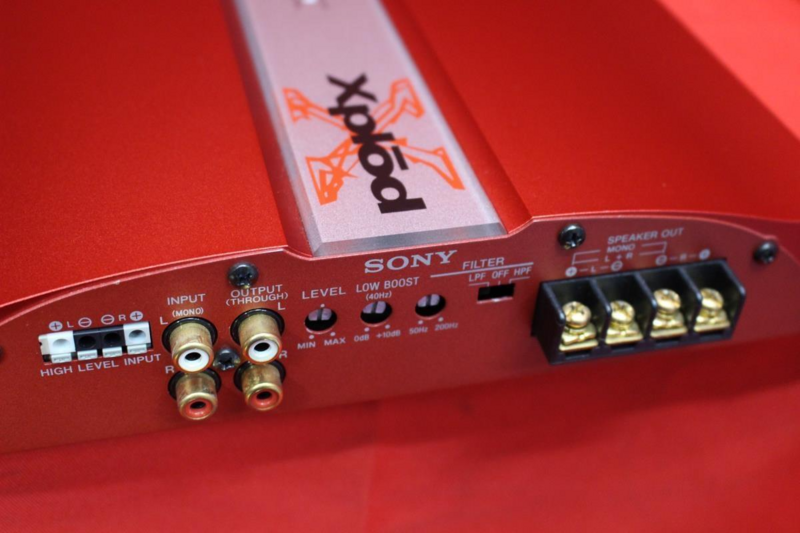

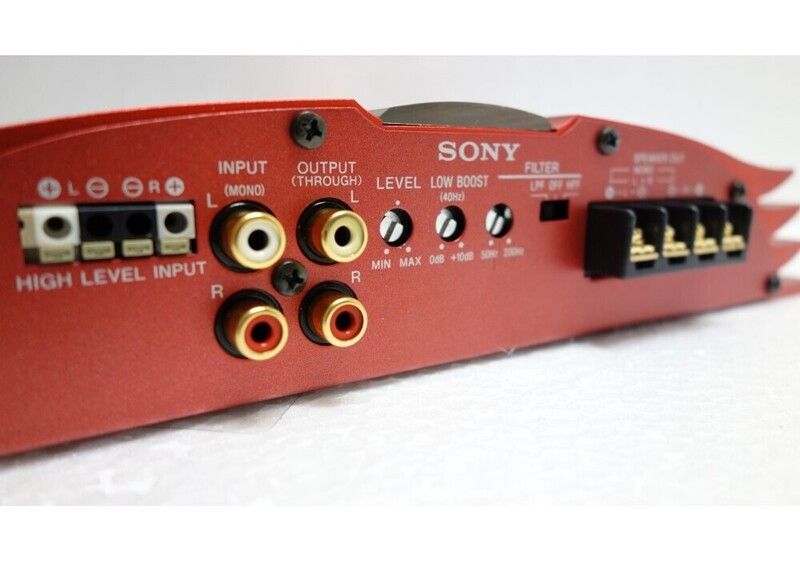

| Inputs | RCA pin jacks, High-level inputs |
| Outputs | Speaker terminals, RCA pre-outs |

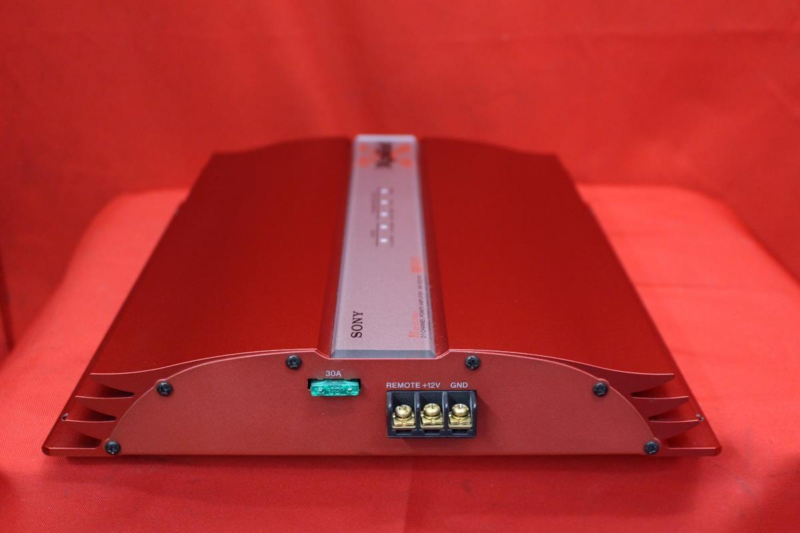

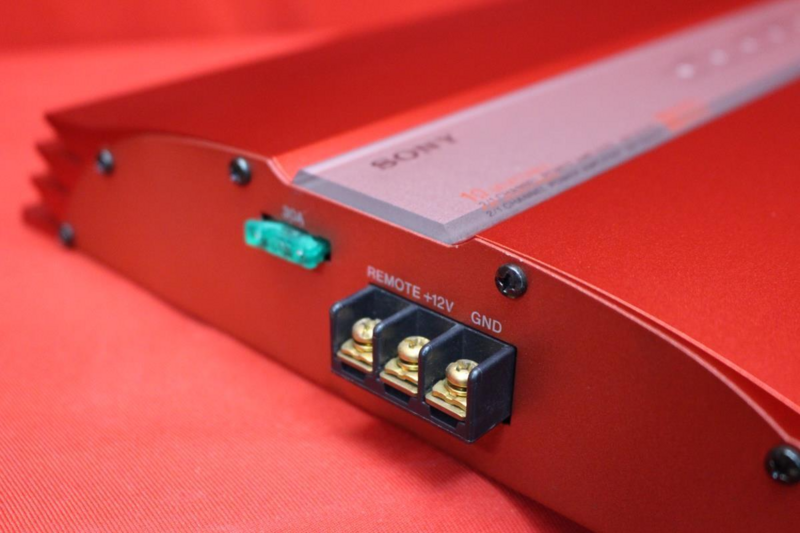

| Power Supply | MOS-FET Power Supply, 4-Rail Power Supply |
| Additional Features | 1-Ohm Load Selectable, Gold-plated terminals, Discrete MOSFET outputs |
-
Maximum Output Power:300 W
-
RMS Power per channel at 2 ohm:140 W
-
RMS Power per channel at 4 ohm:100
-
Built-in filters:
-
Minimum Impedance:1 Ohm Ohm
-
Amplifier Class:Class A/B
-
General Features:Speaker level input
