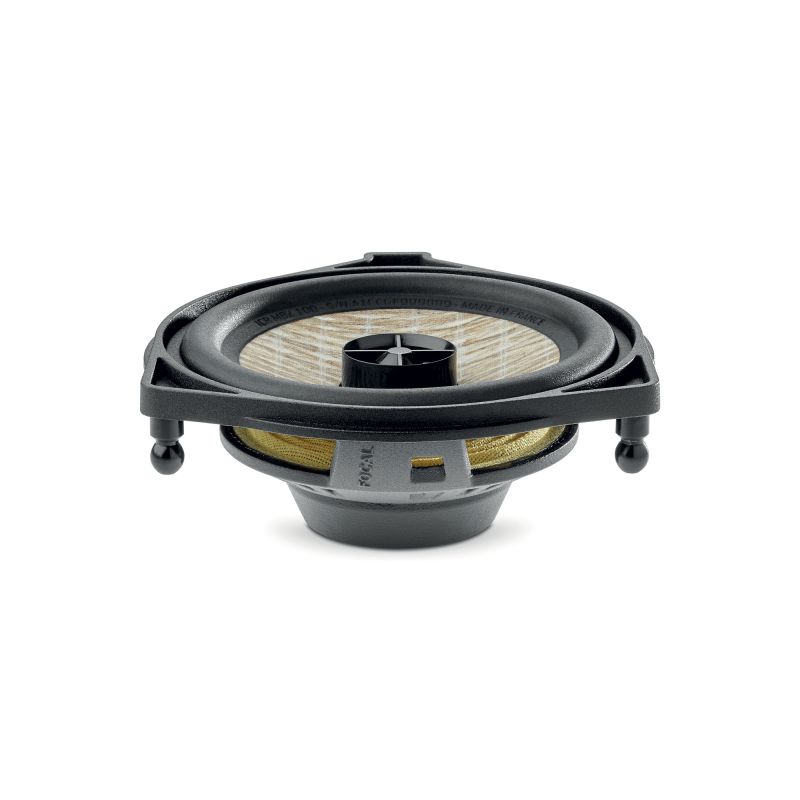

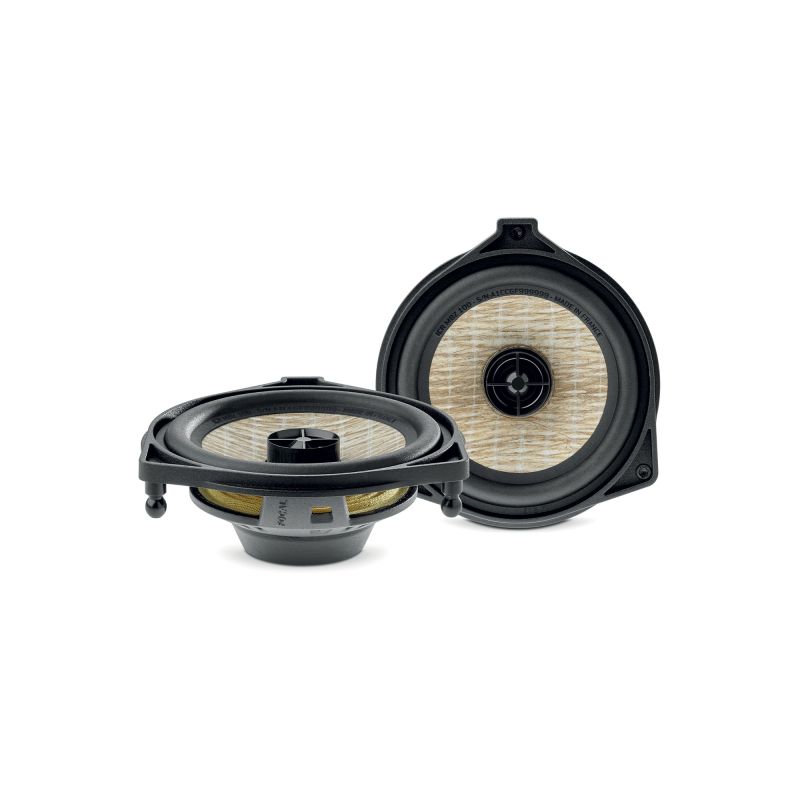

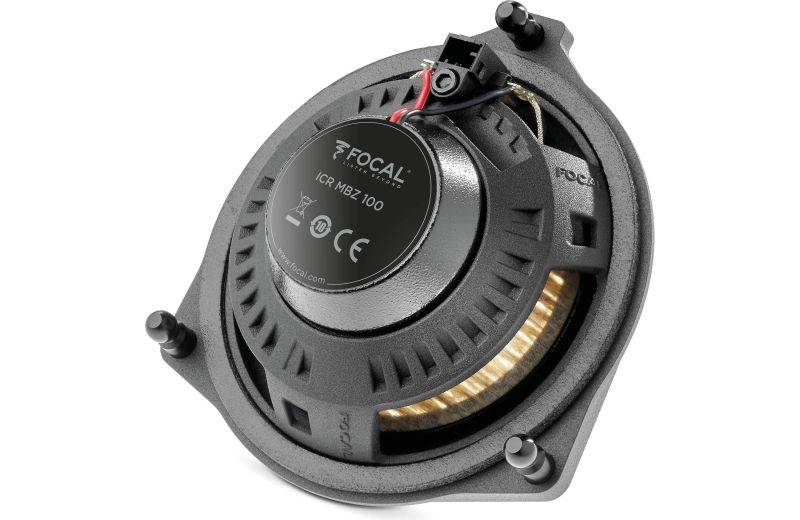

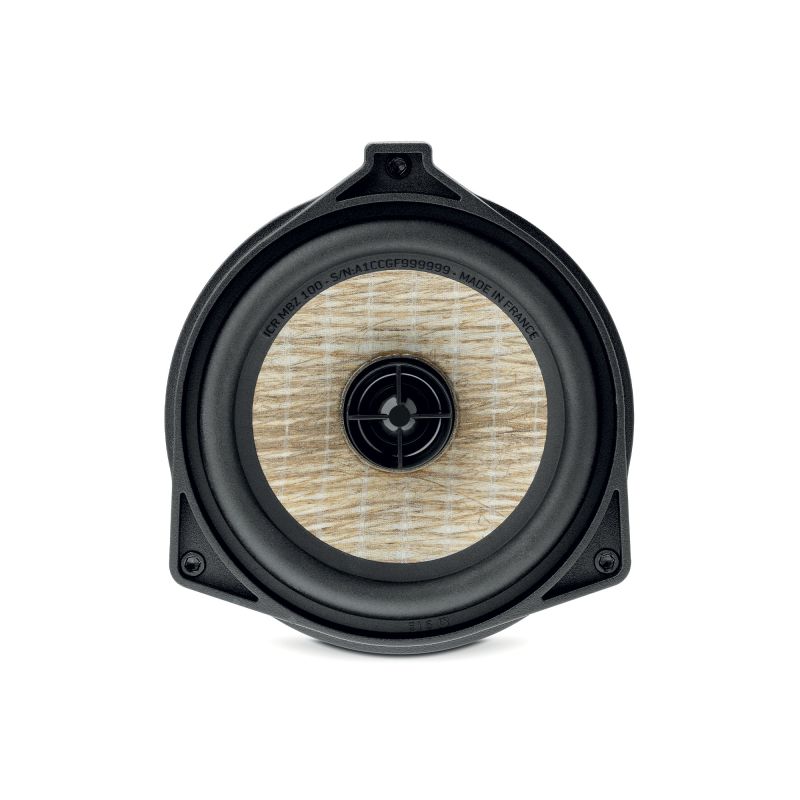

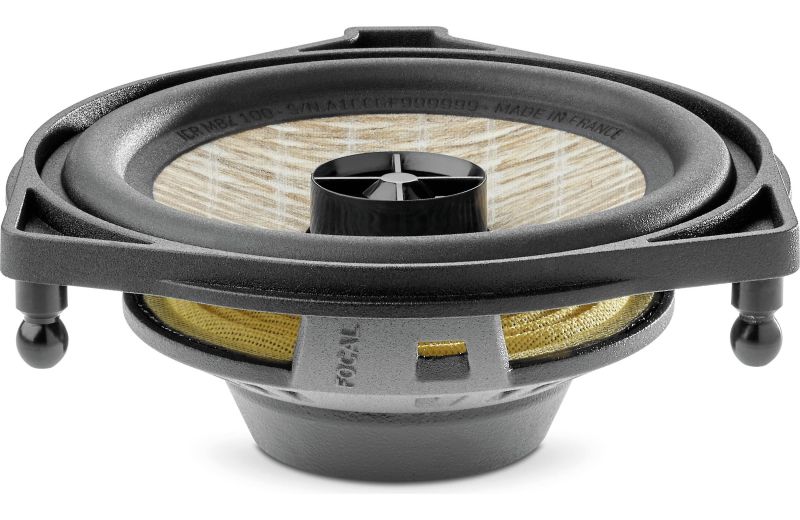

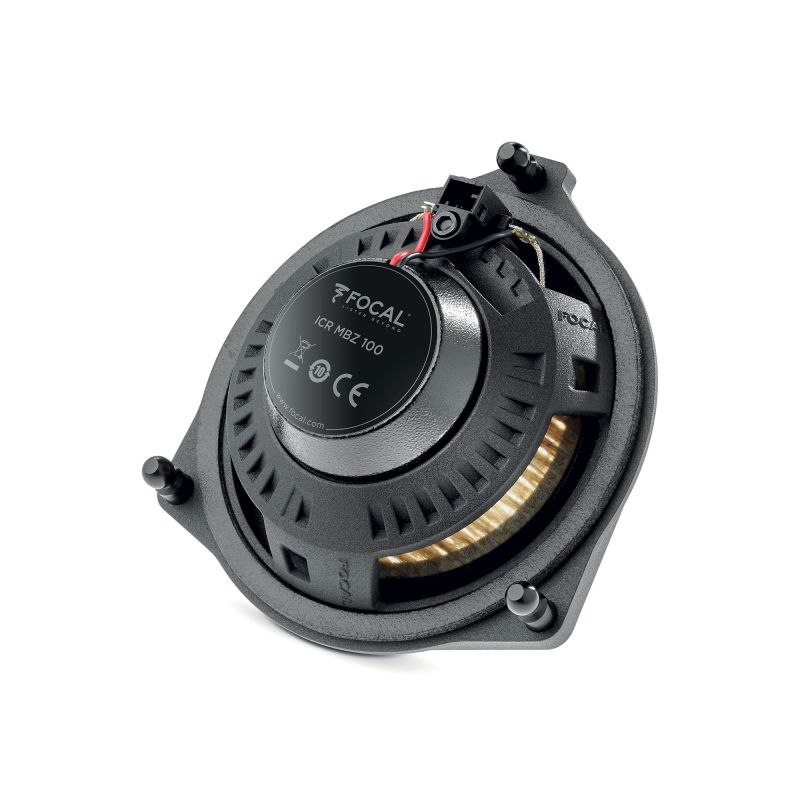

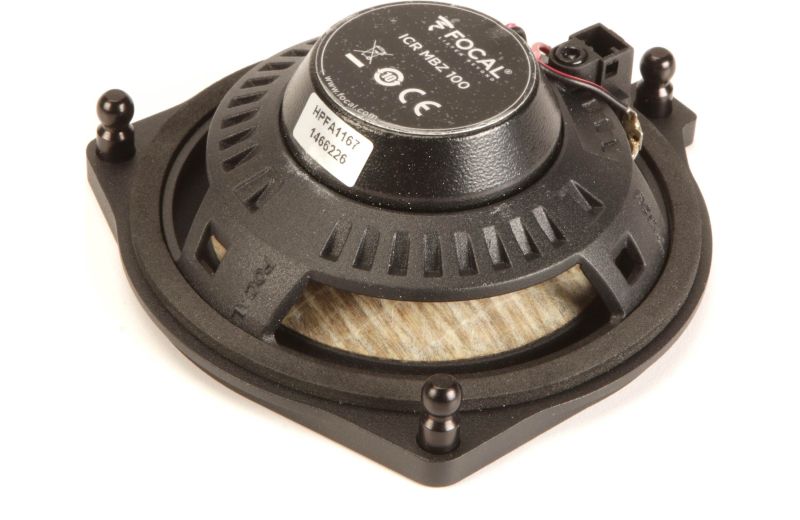

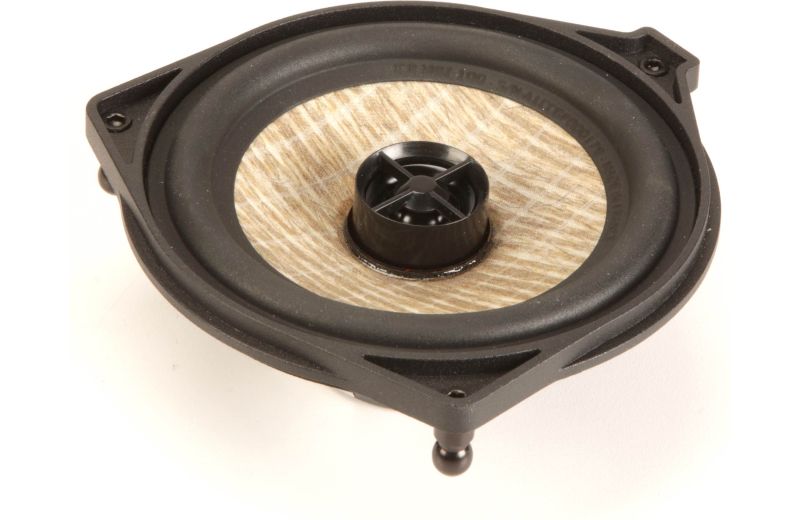

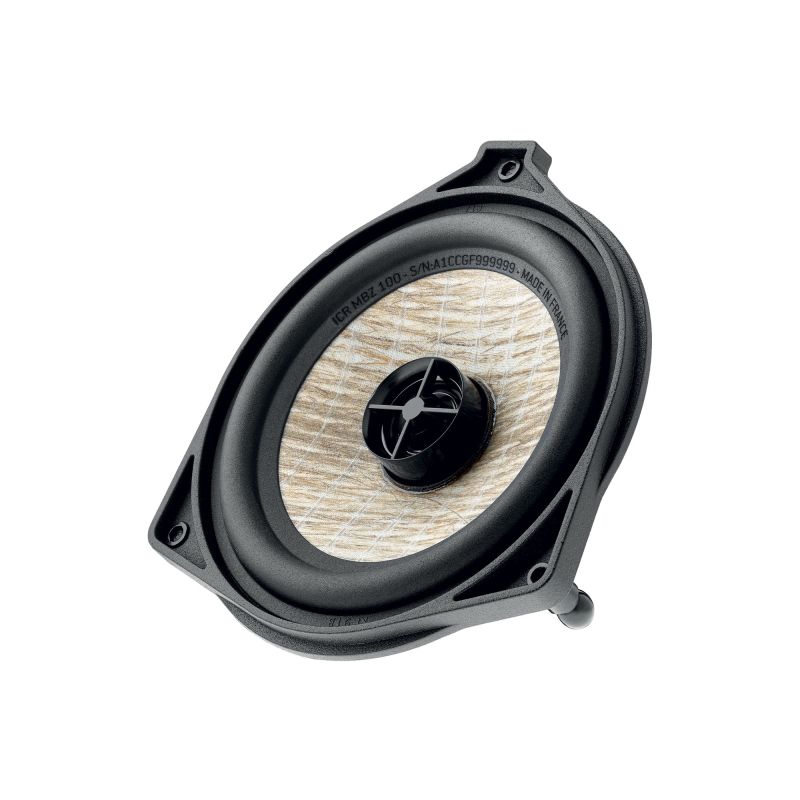

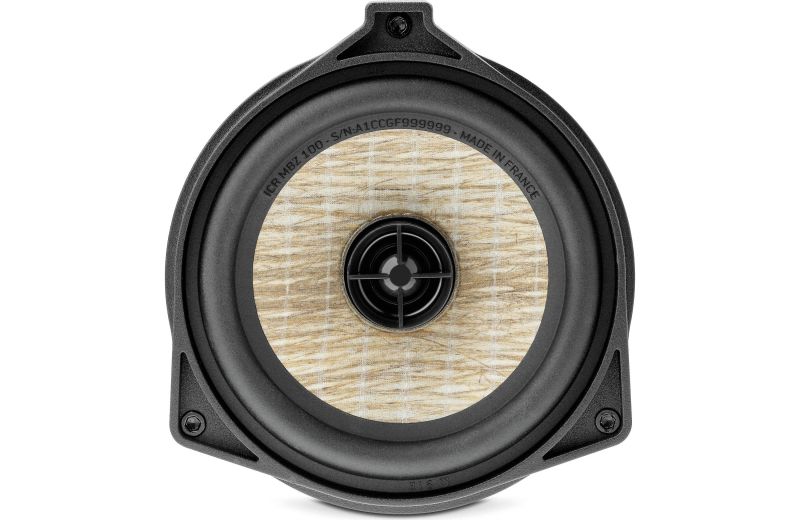

Focal ICR MBZ 100

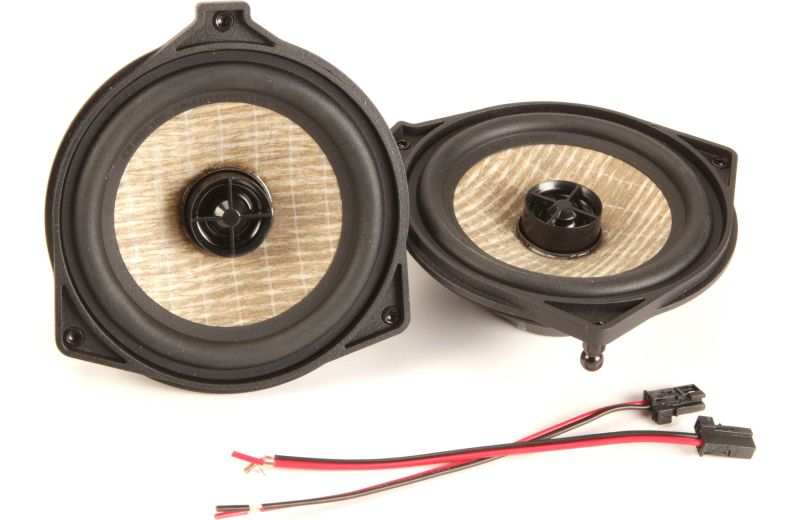

2-way surround coaxial kit
Dedicated to Mercedes-Benz vehicles, the ICR MBZ 100 high-fidelity coaxial surround kit is the ideal solution for car models with dedicated surround slots. It integrates easily and discreetly, delivering high-quality sound. In particular, the drivers are equipped with the Flax sandwich membrane, manufactured in France, which delivers natural midrange and ultra-realistic vocals. And to further optimize performance in a very small space, this kit includes a Neodymium motor.
- Brand: Focal
Key points
- Developed and manufactured in France
- Quick, easy installation with no vehicle modifications required
- Invisible integration into the passenger compartment
- High-fidelity sound and high power handling capability
- Advanced loudspeaker protection
- Vehicle-specific Plug & Play connector
Specifications
Sound - Acoustics
- Product type : Coaxial kit 2-way surround
- Loudspeakers :
Midrange: 3.9" - Membrane :
Flax - Coil diameter : 1"
- Medium : 4"
- Filter : Integrated
- Frequency response (+/- 3dB) :
150Hz - 20kHz - Maximum power : 80 watts

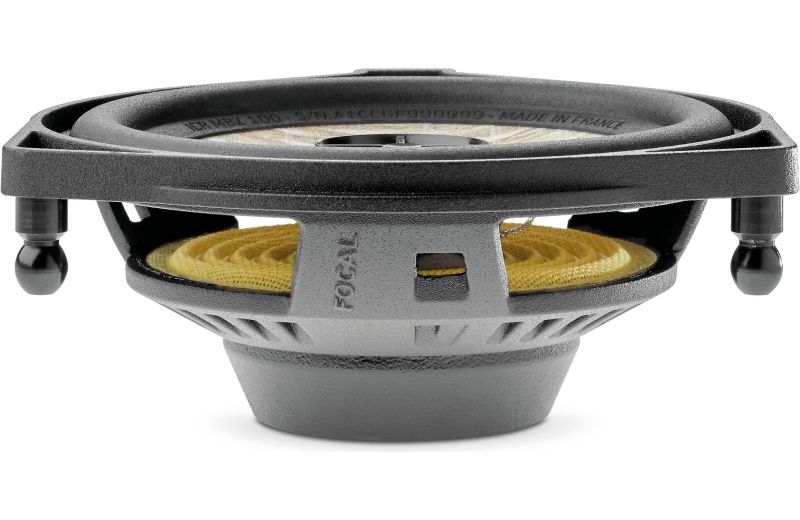

- Motor : Neodymium
- Nominal Impedance : 4 Ω
- Nominal power : 40 W RMS
- Sensitivity : 88 dB
- Surround material : Butyl
Design
- Weight : 250 g / 0.55 livre
- Cut-Out diameter : 106.3 mm / 4.17 in

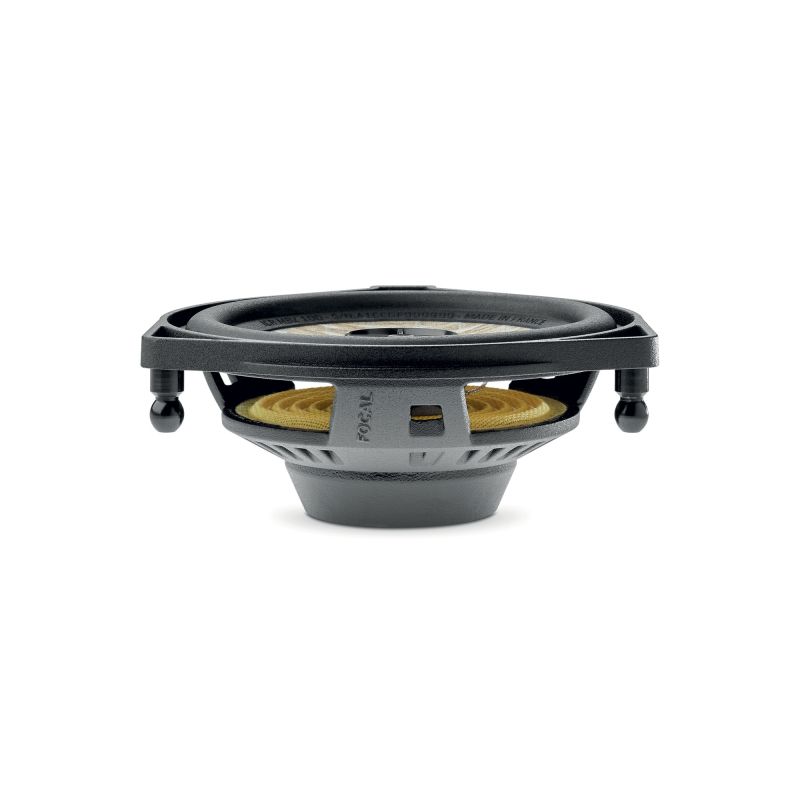

- Depth behind surface (Mounting depth) : 34.2 mm / 1.3 in
Included Accessories
- Plug & Play ISO cables supplied : Yes
-
Design:2-way
-
Max. Power:80 W
-
RMS Power:40 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:34.2 mm
