KFC-PS1397
13cm 2-way Performance Standard Series Speaker System
13cm, 2-Way Performance Standard Speaker System. Features 330W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
- Brand: Kenwood
Quick Buy
Just 4 fields to fill in
Key Features
| 13cm 2-Way Performance Standard Speaker System |
| Woofer cone with Diamond Array Pattern Sound Tune Up Technology |
| Black Coloured Elegant Design with Silver Accents |
| Acoustic Sound Harmonizer Technology |
| Sound Field Enhancer Technology |
| 25mm Balanced Dome Tweeter with Neodymium Magnet |
| 330W Peak Input Power / 75W RMS Input Power |
| Low Tweeter Height Design for Shallow Install Space |
| Grille assembly included |
Speaker Features
| Speaker System | 2-way 2-speaker |
| Speaker Type | Coaxial |
| Diamond Array Pattern Woofer Cone | Yes |
| Sound Field Enhancer | Yes |
| Acoustic Sound Harmonizer | Yes |
| Black-painted Woofer Yoke Plate | Yes |
| Factory Location Fit | Yes |
Speaker/woofer Specifications
| Peak Input Power | 330W |
| Rated Input Power | 75W |
| Woofer Cone material | Black Polypropylene (PP) Cone |
| Woofer cone dimensions | 130mm Ø |
| Speaker Basket | Steel (Black painted) |
| Magnet type | Ferrit (Ø70 x t10) |
| Speaker Surround | Rubber |
| Sensitivity | 85dB/W/m |
| Frequency Response | 82Hz ~ 21000Hz |
| Speaker Impedance | 4Ω |

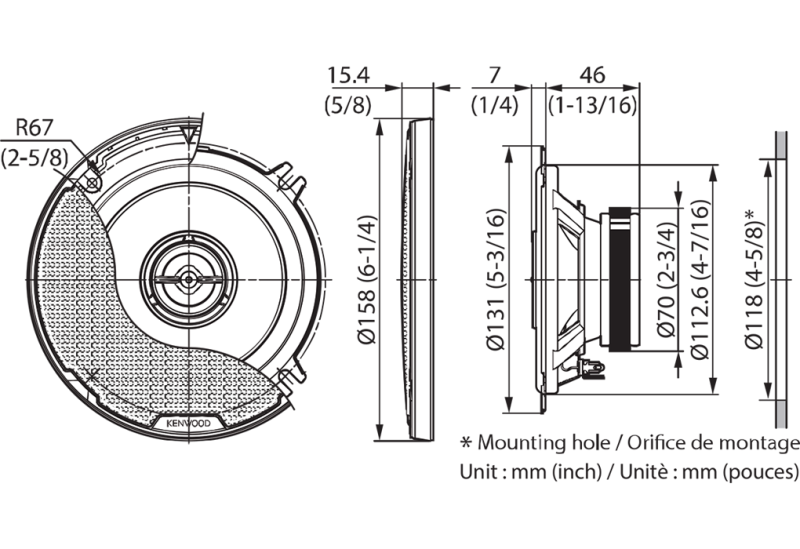

| Dimensions with Grill (WxHxD) | 158 x 158 x 61.9mm |
| Dimensions w/o Grill (WxHxD) | 131 x 131 x 53mm |
| Mouting Hole Diameter Ø | 112.6mm |
| Mounting Depth | 46mm |
| Tweeter Height | 7mm |
Tweeter Specifications
| Cone Size | 25mm |
| Cone Material | Silver Balanced Dome |
| Magnet Type | Neodymium |
Accessories
| Screws (Parker-type) | Ø 4 x 25mm, 8 pieces |
| Speed nut | φ 4, 8 pieces |
| Adhesive tape pad | 1 piece(s) |
| Grille assembly included | Yes |
| Speaker cable | 0.5m |
-
Design:2-way
-
Max. Power:330 W
-
RMS Power:75 W
-
Sensitivity:85 dB/W/m
-
Mounting Depth:46 mm
