KFC-PS5797C
KFC-PS5797C
Factory-Fit 5"x7" 2-way Performance Standard Series Speaker System
5x7" 2-Way Performance Standard Speaker System. Features 320W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
- Brand: Kenwood
Quick Buy
Just 4 fields to fill in
Key Features
| 5x7" Oval Custom Fit 2-way Speakers Speaker System |
| Woofer cone with Diamond Array Pattern Sound Tune Up Technology |
| Black Coloured Elegant Design with Silver Accents |
| Acoustic Sound Harmonizer Technology |
| Sound Field Enhancer Technology |
| 30mm Balanced Dome Tweeter with Neodymium Magnet |
| 320W Peak Input Power / 80W RMS Input Power |
| Low Tweeter Height Design for Shallow Install Space |
Speaker Features
| Speaker System | 2-way 2-speaker |
| Speaker Type | Coaxial |
| Diamond Array Pattern Woofer Cone | Yes |
| Sound Field Enhancer | Yes |
| Acoustic Sound Harmonizer | Yes |
| Black-painted Woofer Yoke Plate | Yes |
| Factory Location Fit | Yes |
Speaker/woofer Specifications
| Peak Input Power | 320W |
| Rated Input Power | 80W |
| Woofer Cone material | Black Polypropylene (PP) Cone |
| Woofer cone dimensions | 195 x 138mm |
| Speaker Basket | Steel (Black painted) |
| Magnet type | Ferrit (Ø75 x t10) |
| Speaker Surround | Rubber |
| Sensitivity | 88dB/W/m |
| Frequency Response | 69Hz ~ 20000Hz |
| Speaker Impedance | 4Ω |

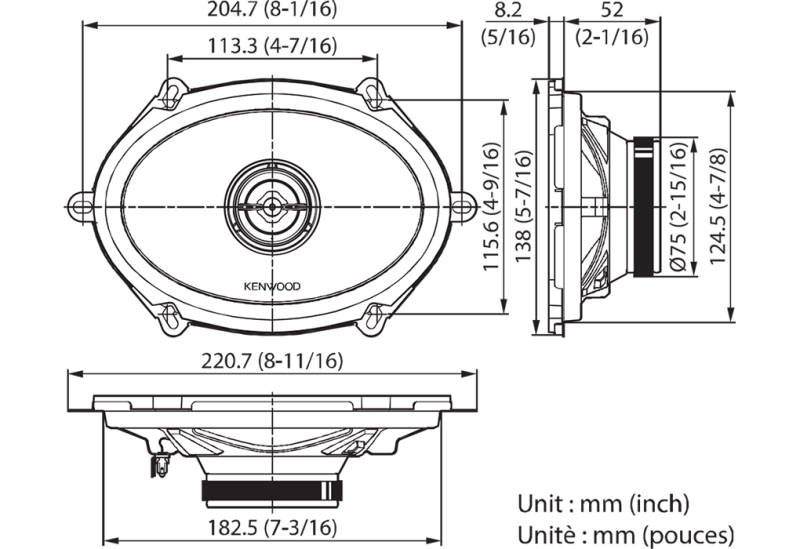

| Dimensions (W x H x D) | 220.7 x 139.3 x 60.2mm |
| Mouting Hole Diameter | 182.5mm x 124.5mm |
| Mounting Depth | 52mm |
| Tweeter Height | 8.2mm |
Tweeter Specifications
| Cone Size | 30mm |
| Cone Material | Silver Balanced Dome |
| Magnet Type | Neodymium |
Accessories
| Screws (Parker-type) | Ø 4 x 30mm, 8 pieces |
| Speed nut | φ 4, 8 pieces |
| Collar | 8 pieces |
| Speaker cable | 0.3m |
-
Design:2-way
-
Max. Power:320 W
-
RMS Power:80 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:52 mm
