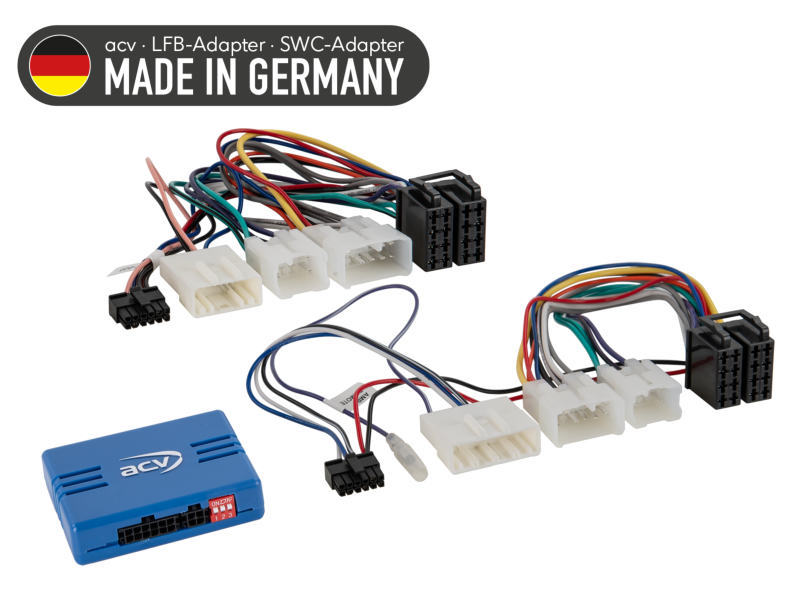

ACV 42a-1300-00c SWRC Toyota
Vehicle application:
Toyota 4Runner 2002 - 2009
Toyota Auris (E150) 07/2007 - 03/2010
Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avanza 2003 - 2011
Toyota Avensis (T25) 01/2003 - 06/2006
Toyota Avensis (T25) 06/ 2006 - 01/2009
Toyota Avensis (T27) 01/2009 - 12/2011
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Camry 2007 - 2011
Toyota Celica (T23) 10/1999 - 01/2006
Toyota Corolla (E120) 01/2002 - 07/2004
Toyota Corolla (E120) 07/2004 - 02/2007
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Corolla Verso (R1) 05/2004 - 06/2007
Toyota Corolla Verso (R1) 07/2007 - 04/2009
Toyota Estima 2006 - 2016
Toyota FJ Cruiser 2001 - 2007
Toyota Fortuner 2011 - 2015
Toyota Hiace (H1) 11/2006 - 10/2010
Toyota Hilux (N25) 10/2005 - 11/2008
Toyota Hilux (N25) 11/2008 - 12/2011
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2006 - 2011
Toyota Innova 2011 - 2015*
Toyota Landcruiser (J12) 01/2003 - 01/2009
Toyota Matrix 2003 - 2014
Toyota MR2 (W3) 04/2000 - 03/2003
Toyota Prado 2003 - 2009
Toyota Previa 2006 - 2019
Toyota Prius ZVW30/ZVW35 (XW3) 06/2009 - 04/2012
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA2) 10/2000 - 12/2003
Toyota RAV4 (XA2) 12/2003 - 01/2006
Toyota RAV4 (XA3) 03/2006 - 04/2009
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018*
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Vios 2003 - 2007
Toyota Yaris (XP9) 01/2006 - 01/2009
Toyota Yaris (XP9) 01/2009 - 10/2011
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020
Toyota Yaris (XP150) 2013 - 2023
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
SWC
*vehicles with 360° OEM camera system SWC Toyota different vehicles 10Pin/6Pin/28Pin/24Pin > item 42sty019
HU application:
Multilead different HU > item: 42arc100
Alpine 3,5mm jack connector > item: 42arc101
Blaupunkt 2010> 3,5mm jack connector > item: 42arc107
Blaupunkt 2010> Key1 / Key2 / (GND) connector > item: 42arc000
China Hu Key1 / Key2 / (GND) > item: 42arc000
Clarion 3,5mm jack connector > item: 42arc104
Digital Dynamics single lead connector > item: 42arc108
ESX Key1 / Key2 connector > item: 42arc000
JVC 3,5mm jack connector > item: 42arc104
JVC single lead connector > item: 42arc105
Kenwood single lead connector > item: 42arc105
Kenwood 2017> 3,5mm jack connector > item: 42arc107
Kenwood 2020> Key1 / Key2 / GND connector > item: 42arc000
Pioneer 3,5mm jack connector > item: 42arc107
Pioneer AVH/DMH/SPH 3,5mm jack connector > item: 42arc1072
Snooper Key1 / Key2 connector > item: 42arc000
Sony 3,5mm jack connector > item: 42arc107
XZent single lead connector > item: 42arc108
Zenec single lead connector > item: 42arc108
General installation instructions:
Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.
Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle
Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6
More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.
More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
Note:
analog
connector: 10 Pin / 6 Pin / 20 Pin Toyota
connector: 10 Pin / 6 Pin / 28 Pin Toyota
vehicles with Fujitsu Ten / Matsushita OEM HU
vehicles with OEM rear view camera*
vehicles without 360° OEM camera system**
vehicles without JBL / JBL Synthesis / Mark Levinson OEM amplified system
vehicles without 18 Pin CN 700 LAN connector
diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised
