Kenwood KFC-X1741
17 cm 2-way Component Speaker System
Coaxial speakers designed for eXcellence deliver solid performance, superior linearity and great bass response. Upgrade to X speakers and experience the perfect balance of performance and control.
- Brand: Kenwood
Key Features
| 17cm 2-Way High Grade X-series Speaker System |
| 165mm oversized polypropylen cone |
| Black Coloured Elegant Design with Silver Accents |
| Accoustic Sound Harmonizer Technology |
| Sound Field Enhancer Technology |
| 25mm Soft Dome Tweeter with Neodymium Magnet |
| 240W Peak Input Power / 80W RMS Input Power |

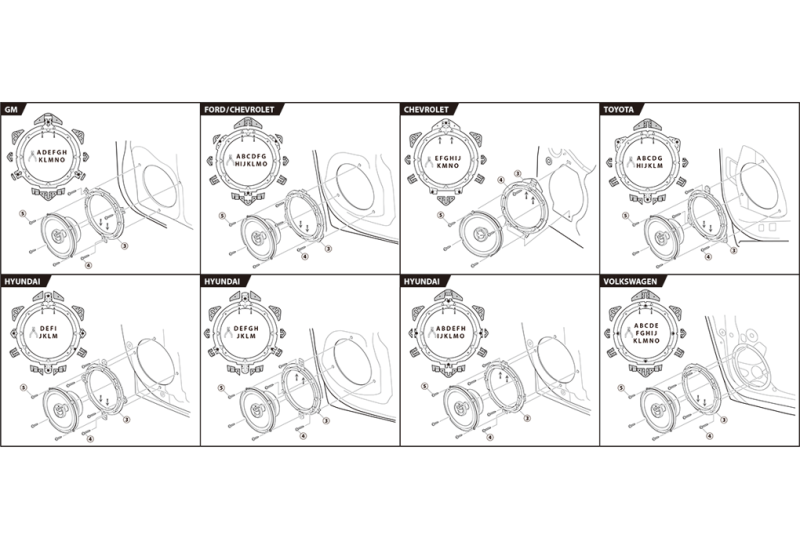

| Easy installation for various types of vehicles by using the included bracket |
| (Recommended for GM/ FORD/ CHEVROLET/ TOYOTA/HYUNDAI/ VOLKUSWAGEN) |
| Grille assembly included |
Speaker Features
| Speaker System | 2-way 2-speaker |
| Speaker Type | Coaxial |
| Speaker Cone Design | Black Injection P.P.Cone |
| Sound Field Enhancer | Yes |
| Acoustic Sound Harmonizer | Yes |
| Black-painted Woofer Yoke Plate | Yes |
| Installation Capabillity | Door/Rear Deck |
| Factory Location Fit | Yes |
Speaker/woofer Specifications
| Peak Input Power | 240W |
| Rated Input Power | 80W |
| Woofer Cone material | Black Polypropylene (PP) Cone |
| Woofer cone dimensions | 165mm Ø |
| Speaker Basket | Steel (Black painted) |
| Magnet type | Ferrit |
| Speaker Surround | Rubber |
| Sensitivity | 87dB/W/m |
| Frequency Response | 67Hz ~ 21000Hz |
| Speaker Impedance | 4Ω |

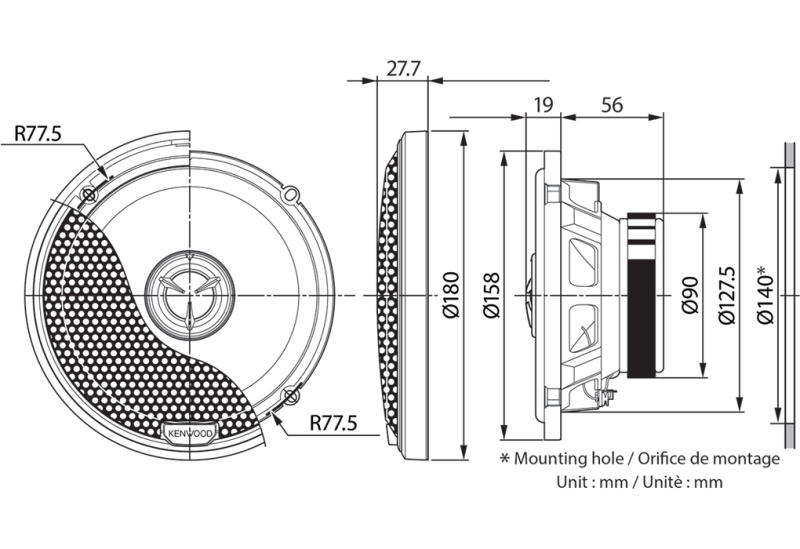

| Dimensions with Grill (WxHxD) | 180 x 180 x 84.2mm |
| Dimensions w/o Grill (WxHxD) | 158 x 158 x 75mm |
| Mouting Hole Diameter Ø | 127.5mm |
| Mounting Depth | 56mm |
| Tweeter Height | 19mm |
Tweeter Specifications
| Cone Size | 25mm |
| Cone Material | Soft dome |
| Magnet Type | Neodymium |

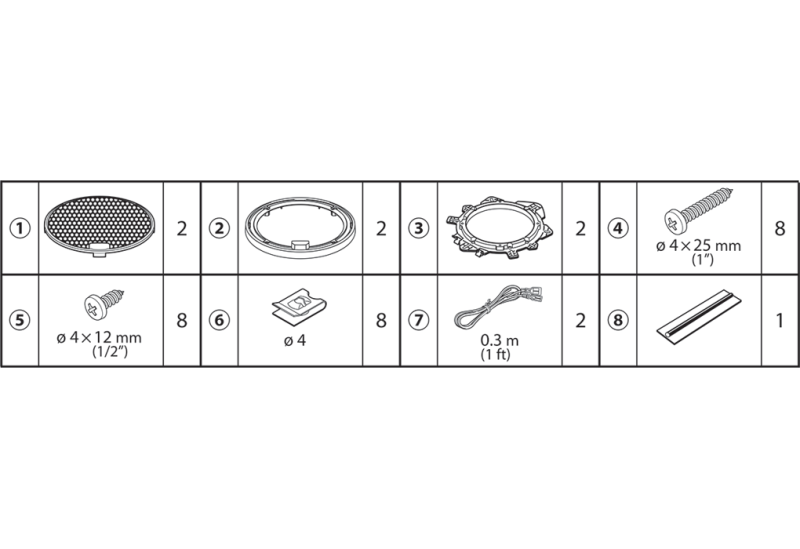

Accessories

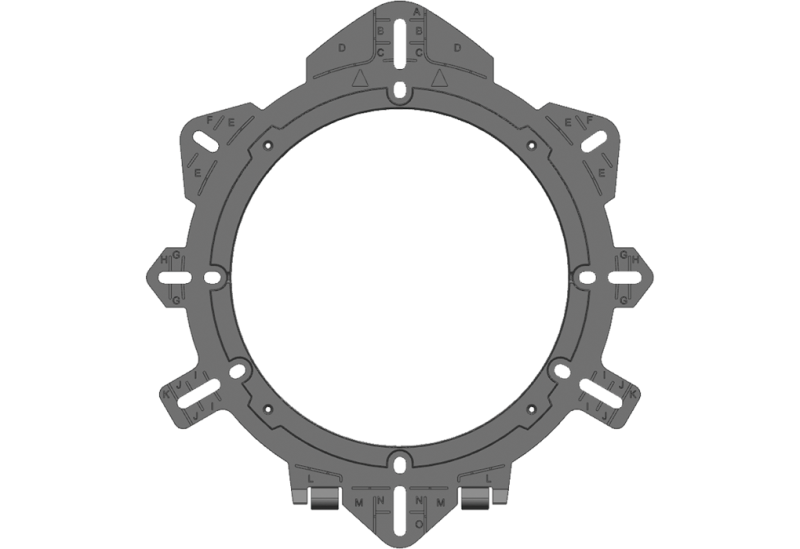

| Bracket | Multi adaptor bracket |
| Screws (Parker-type) | Ø 4 x 25mm, 8 pieces |
| Screws (Parker-type) | Ø 4 x 12mm, 8 pieces |
| Speed nut | φ 4, 8 pieces |
| Adhesive Tape | 50 mm |
| Grille assembly included | Yes |
| Grill holder | 2 pieces |
| Speaker cable | 0.3m |
-
Design:2-way
-
Max. Power:100 W
-
RMS Power:80 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:56 mm
