Alpine HDZ-110
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

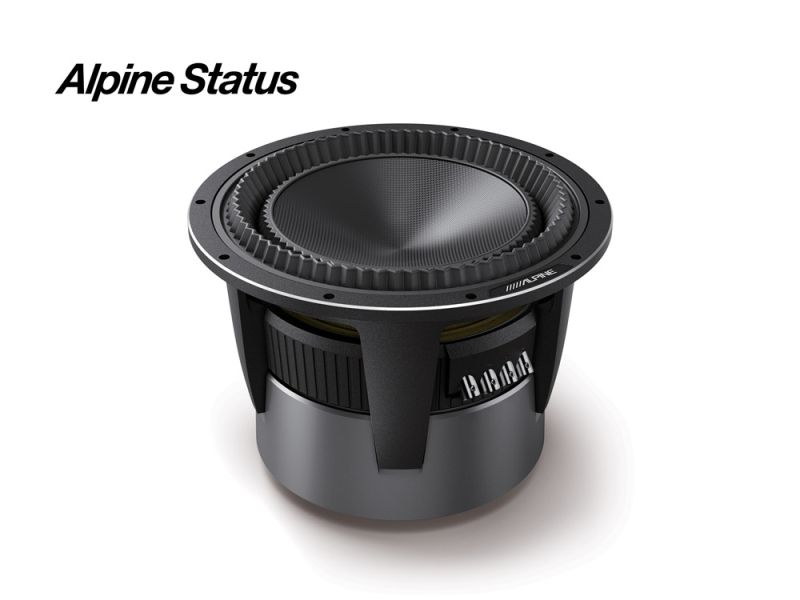

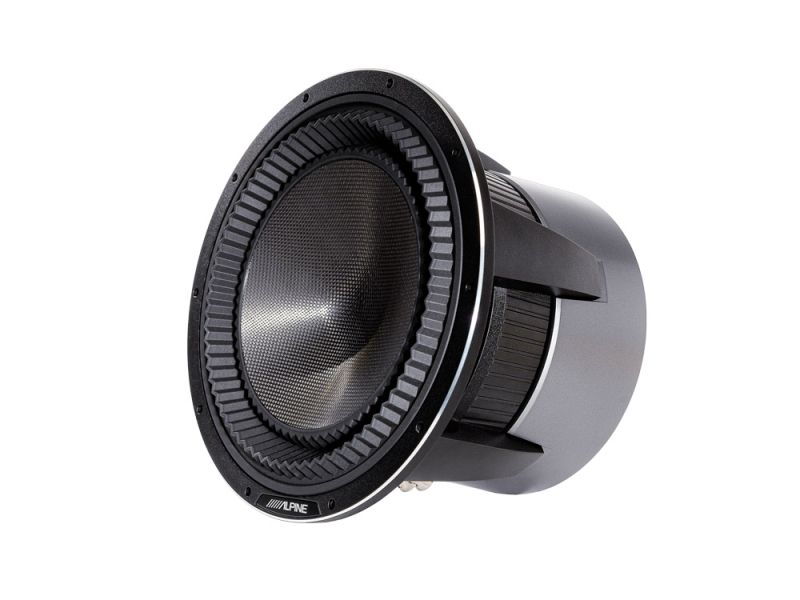

28cm High-Performance Subwoofer
Drawing from AlpineF#1Status subwoofer development learnings, we created the HDZ-110 Alpine Status 28cm subwoofer. It comes very close to its bigger brother’s performance, build quality and design. It features a dual 2Ohm configuration, an ultra-strong baked carbon cone, double-gathered surround, heavy-gauge screw-terminals and a huge ferrite magnet.

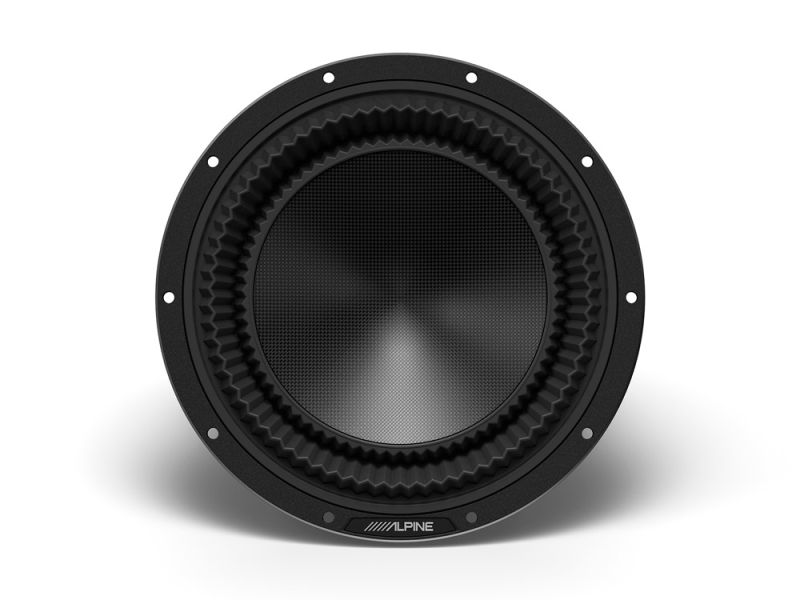

Carbon Fiber Cone
The HDZ-110 Alpine Status subwoofer features a backed carbon composite cone to achieve a fully unified timbre identity with the Alpine Status speakers – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high strength.
Alpine Status Full System
Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.
Premium Build-Quality

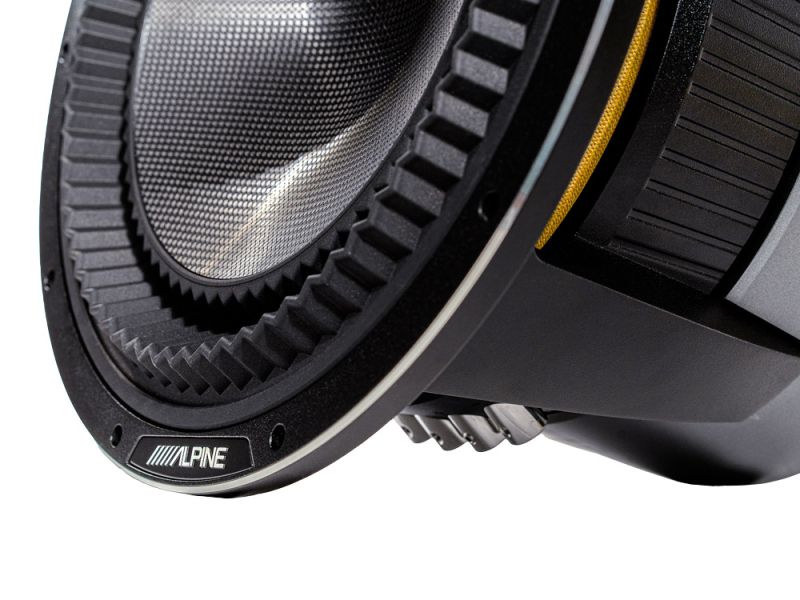

Yet another trickle-down technology from the AlpineF#1Status subwoofer: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.
Dual 2 Ohm Configuration
This subwoofer features dual 2 Ohm voice coils, allowing it to be driven by 2 mono amps. You can also create a 4 Ohm configuration by creating a series connection and use the HDA-V90’s subwoofer channel. Refer to the owner’s manual linked below to see all connection configurations.
Studio Recording Spec
Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.
Features
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power Handling: 1200 Watts
- Maximum RMS Power Handling: 400 Watts
- Aluminum die-cast frame
- Backed carbon fiber cone
- Double-gathered edge

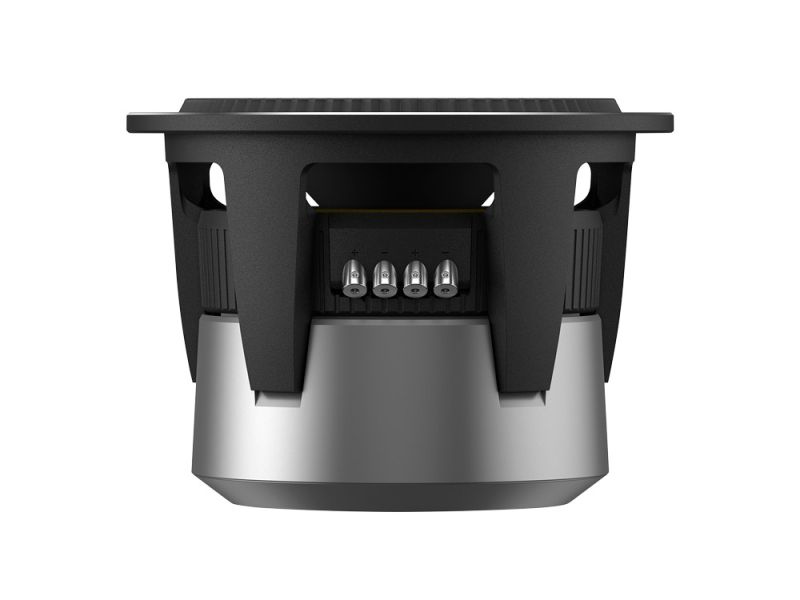

- Heavy-gauge screw-type cable terminals

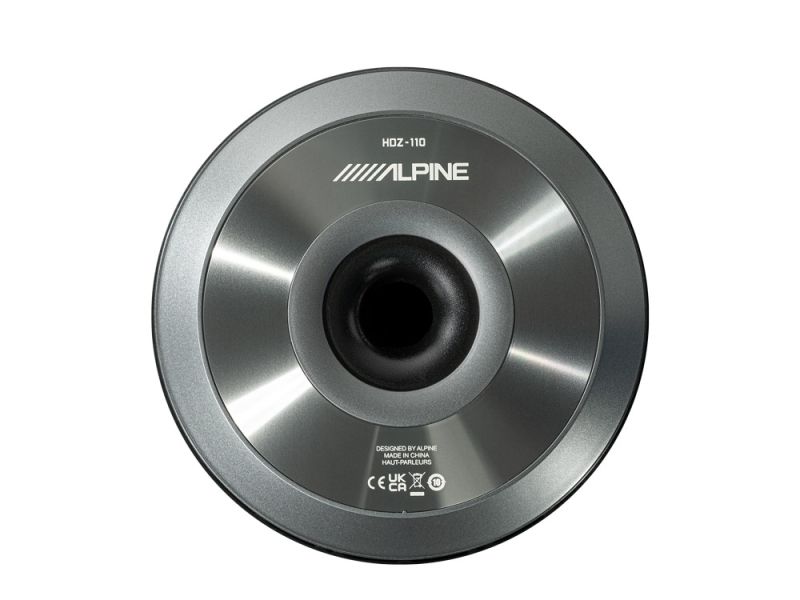

- High-performance ferrite magnet
-
Design:Subwoofer
-
Max. Power:1200 W
-
RMS Power:400 W
-
Sensitivity:84 dB/W/m
-
Mounting Depth:196 mm
