Alpine HDZ-65CS

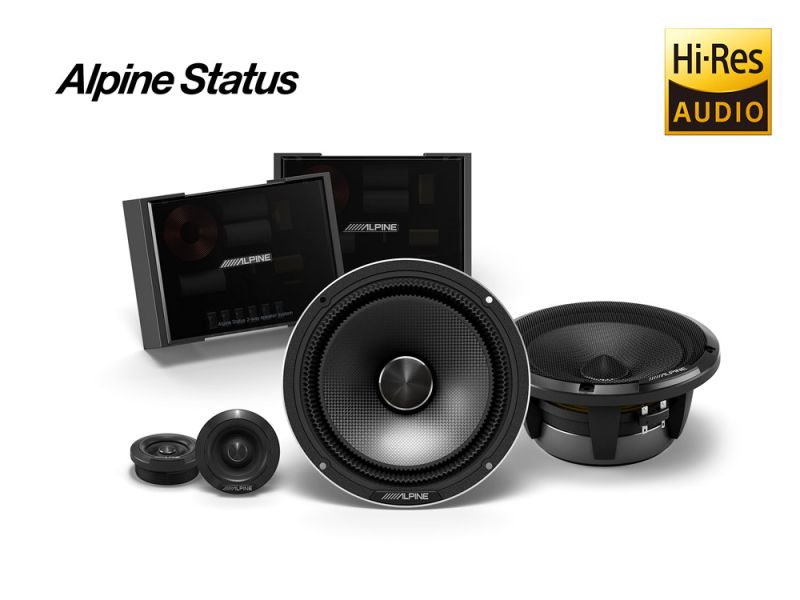

Alpine Status 16.5cm (6-1/2") 3-Way Component Speaker Set
- Brand: Alpine
Quick Buy
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Slim-Fit 2-Way Speaker System
Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 2-way slim fit system consists of 170mm door woofers and 40mm Slim-Fit tweeters. They also include high-end X-over networks in the set.

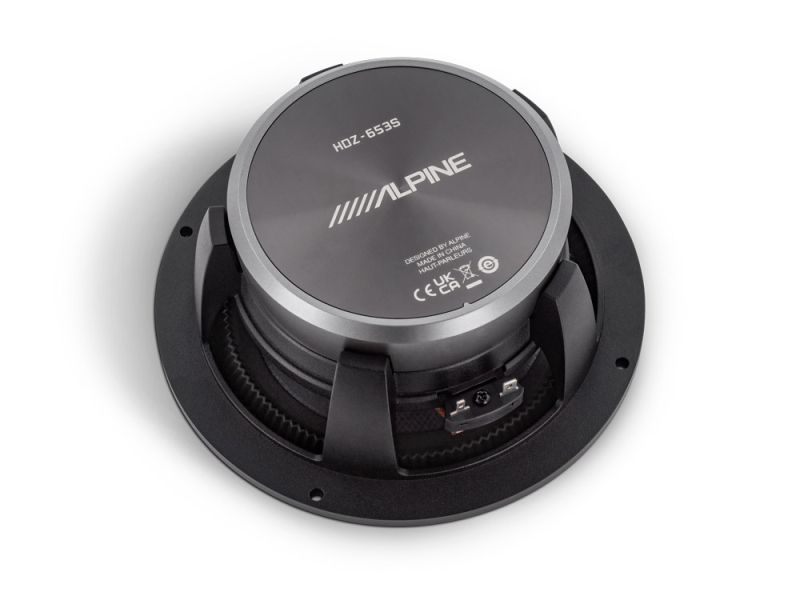

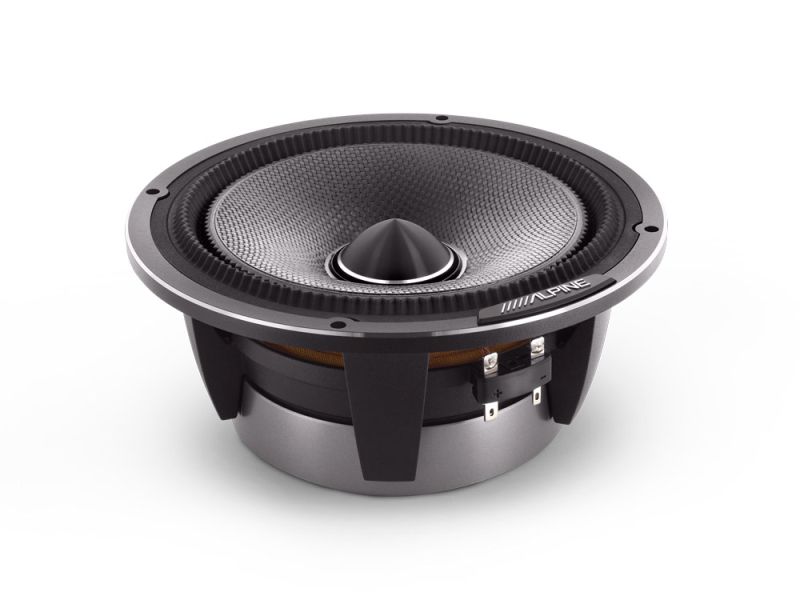

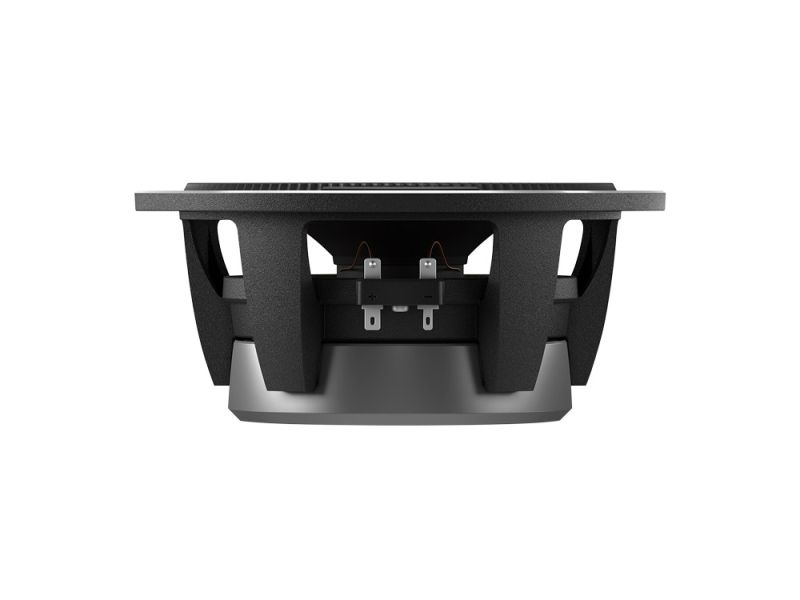

Carbon Fiber Cones
All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.
Double-Gathered Edge
Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.

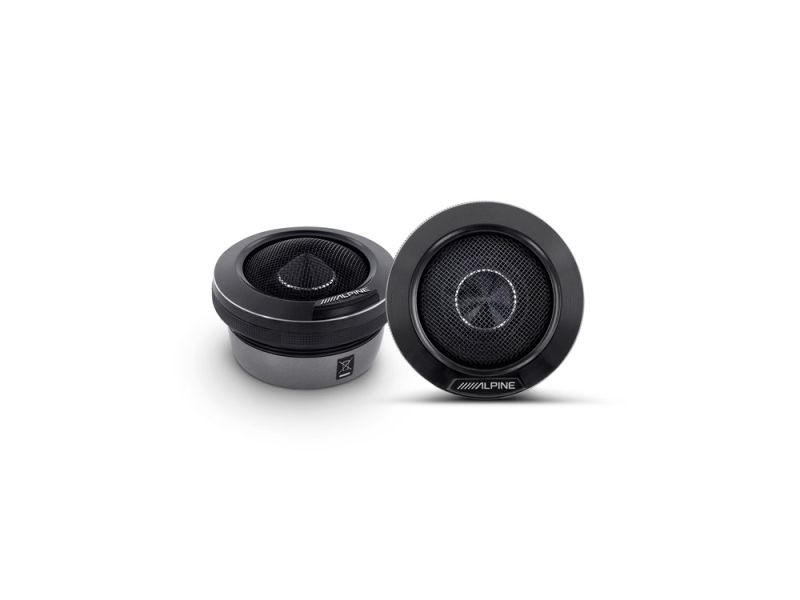

Slim-Fit Tweeter
The included 40mm Hi-Res Audio slim-fit tweeters sound simply amazing and play up to 40kHz. They are significantly smaller than the HDZ-65C tweeters, with the focus on easy installability. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.

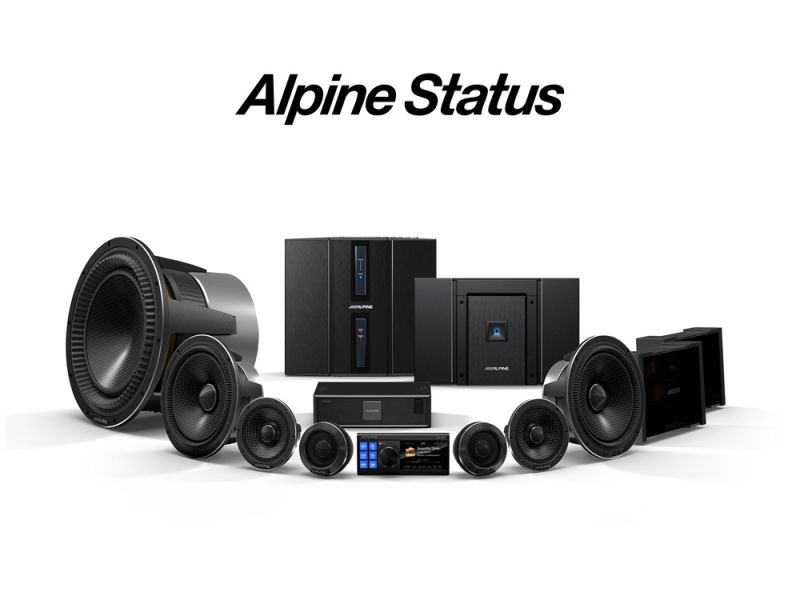

Alpine Status Full System
Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

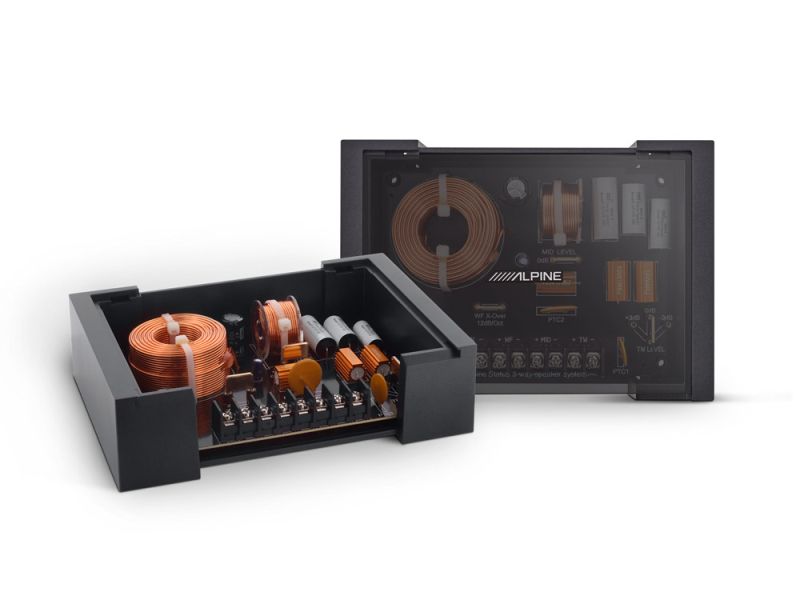

Audiophile Speaker X-Overs
The included 2-way x-over networks feature hand-selected, high-end components and offer many adjustment possibilities: you can adjust the tweeter level from +3dB, 0dB or -3dB and you can set the woofer X-Over to either 12dB/oct or 6dB/oct. The smoked acrylic cover bearing the Alpine logo can be slid-out to the front to gain access to the screw-terminals and jumpers.
Audiophile Tweeter Version
If you want to achieve the best possible sound quality and have space for a custom tweeter installation, we recommend to use the HDZ-65C instead. The 70mm Hi-res Audio ring-radiator tweeters sound simply amazing and play up to 40kHz. They feature a 25mm carbon fiber diaphragm that is tuned to perfectly harmonize with the mid-range speaker and woofer to achieve a fully unified timbre identity. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.
Studio Recording Spec
Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.
Features
- Hi-Res Audio certified 3-Way speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts
- Woofer diameter: 170mm (177mm with attached grill)
- Tweeter diameter (slim-fit): 40mm (58mm with housing)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge
- High-end X-Over networks
- Included speaker grills
- Integrated Wave Guide on all speakers
-
Design:2-way component system
-
Max. Power:300 W
-
RMS Power:100 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:67 mm
