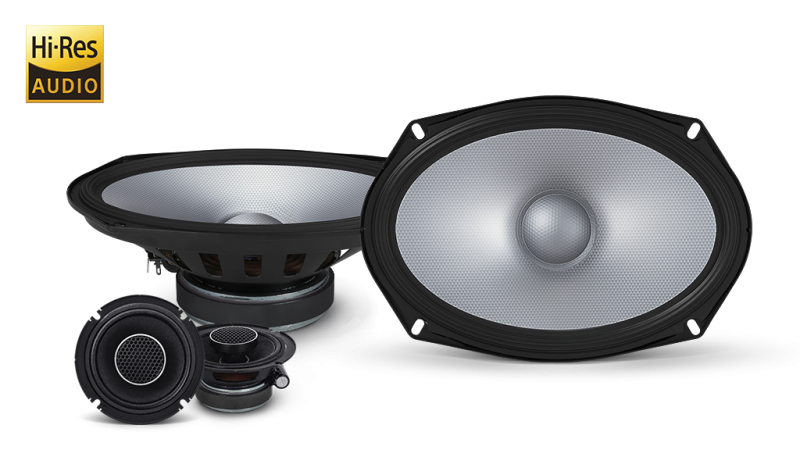

Alpine S2-S69C
S-Series 6×9 Inch Component + 3″ Coaxial Hi-Res Audio Component Speaker System
- Brand: Alpine
Quick Buy
Just 4 fields to fill in
Features

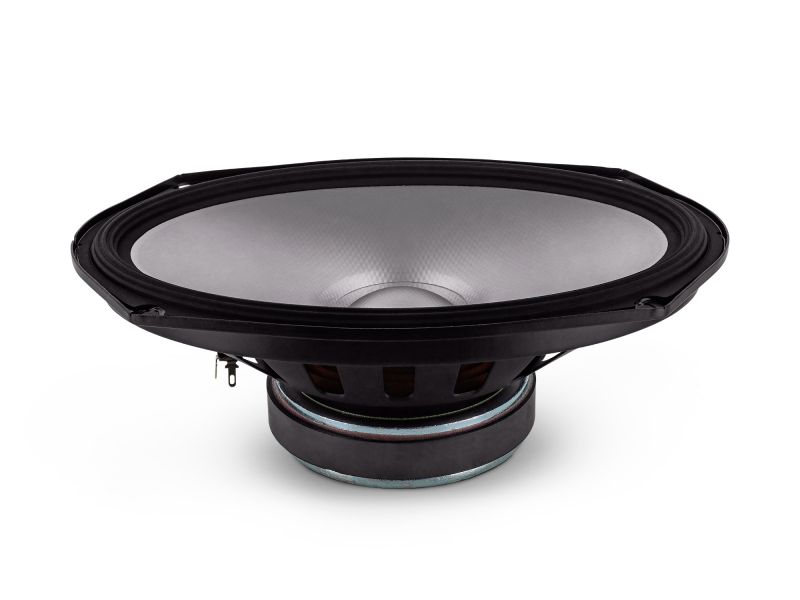

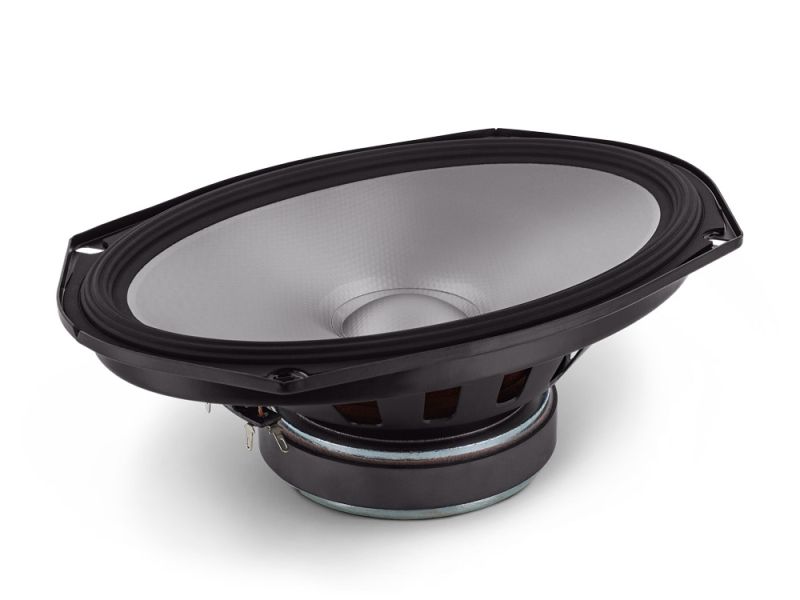

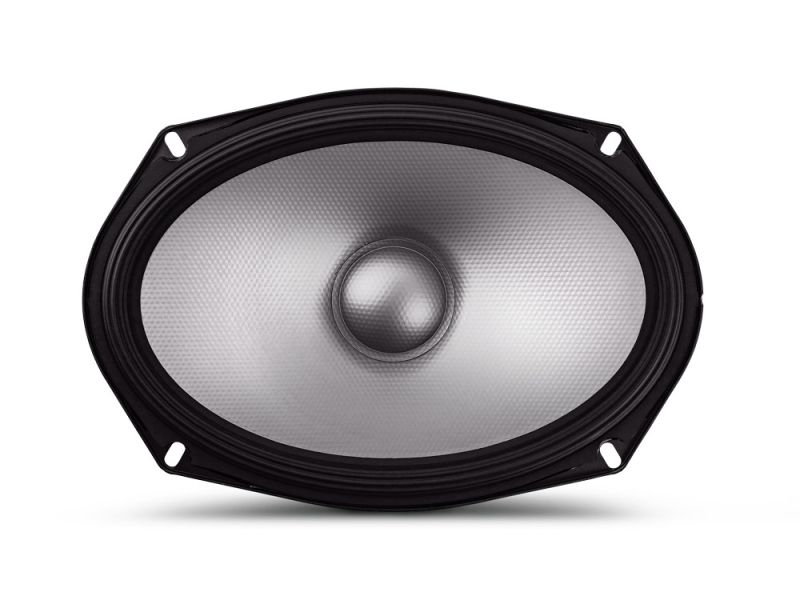

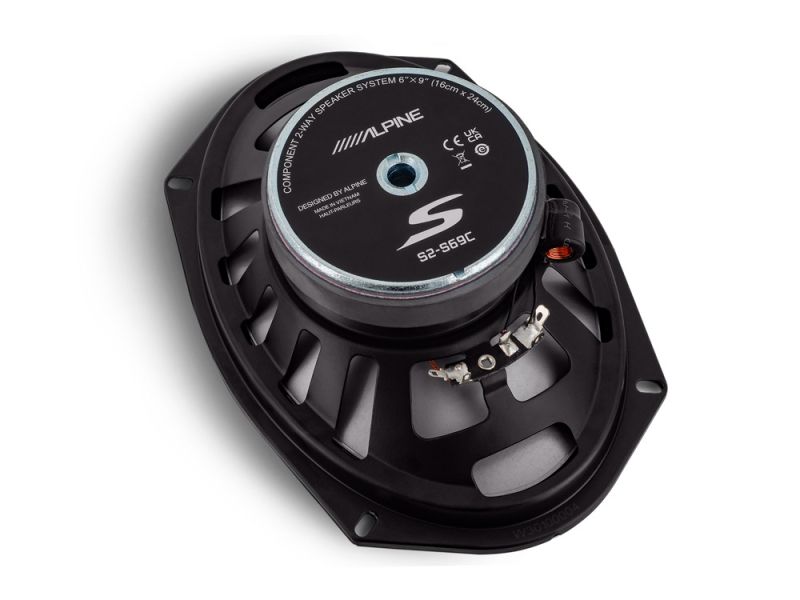

Woofer
- 6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker
- HAMR (High Amplitude Multi-Roll) Surround
- Large 35mm Voice Coil
- Magnet Material: Strontium Ferrite
- Grill sold separately: KTE-S69G

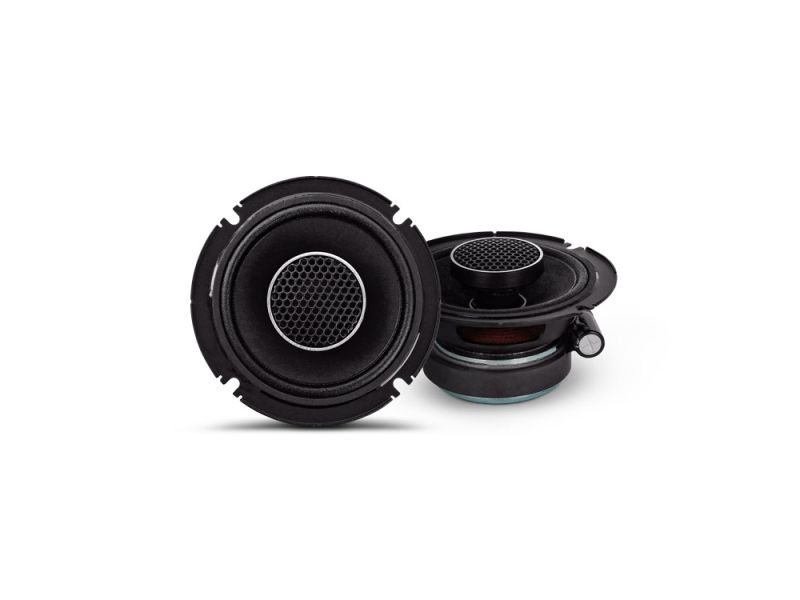

Mid-Tweeter
- 3″ (79mm) Pulp-Cone Coaxial Speaker with 1″ Extended-Range Soft Dome Tweeter
- Magnet Material: Strontium Ferrite
- Tweeter Grill: Perforated Net
Crossover Network
- Woofer: Integrated Copper Air-Coiled Wound Inductor
- Mid/Tweeter: High Grade Audio Poly Capacitor
Specifications
Power Handling
- Peak Power: 260 Watts
- RMS Power: 85 Watts (CTA-2031 Compliant)

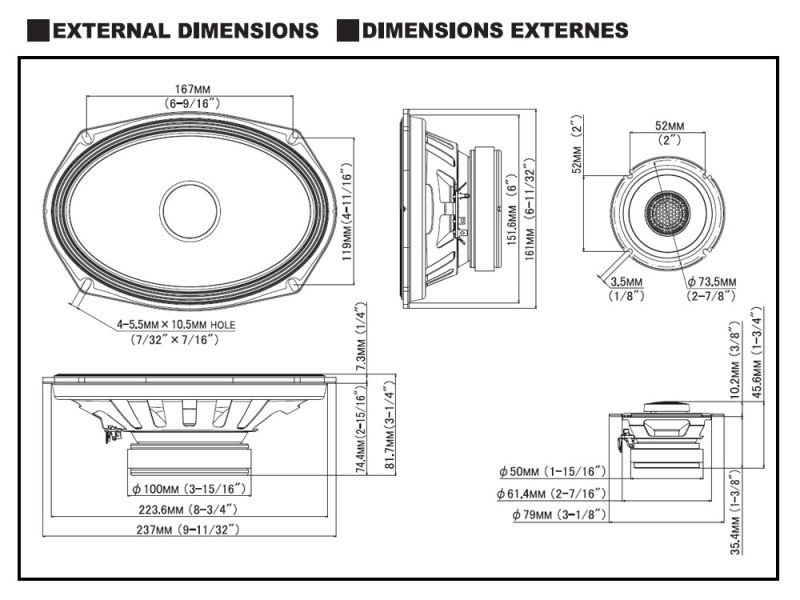

Dimensions Woofer
- Frame 237 mm x 161mm
- Cutout Diameter: 242mm x 152mm
- Mounting Depth: 74.5 mm
- Mounting Height: 7.3 mm
- Magnet: 100.0 mm
Dimensions Mid-Tweeter
- Frame: 79mm
- Mounting Diameter: 61.4mm
- Mounting Depth: 10.2mm
- Magnet: 50mm
- Height: 45.6 mm
General
- Frequency Range: 55 Hz – 40 kHz
- Impedance: 4 Ohms
- Sensitivity: 90 dB SPL (1W @1m)
- Recommended Amplification: up to 85W RMS per channel
-
Design:2-way component system
-
Max. Power:260 W
-
RMS Power:85 W
-
Sensitivity:90 dB/W/m
-
Mounting Depth:74 mm
