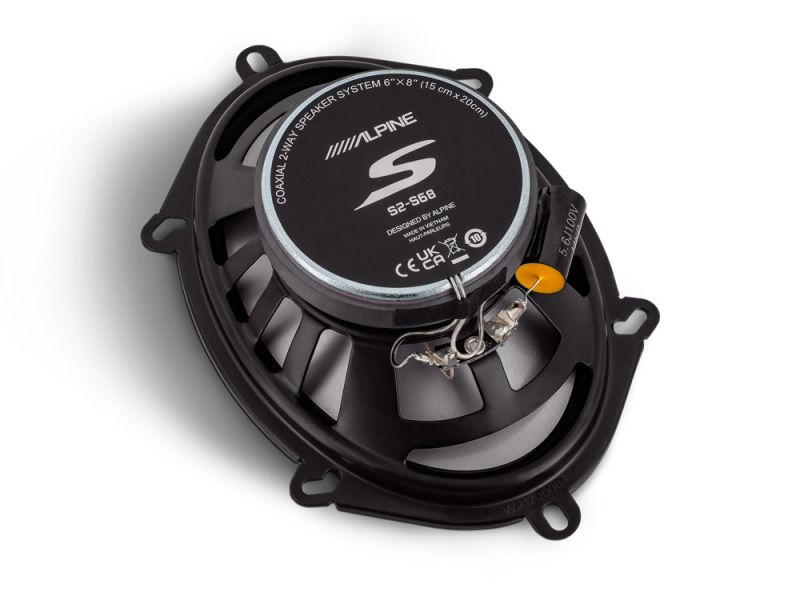

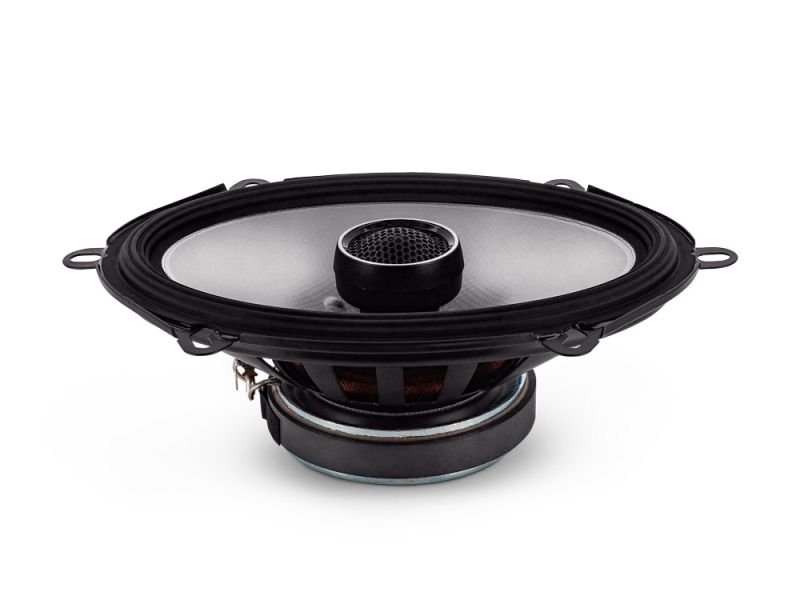

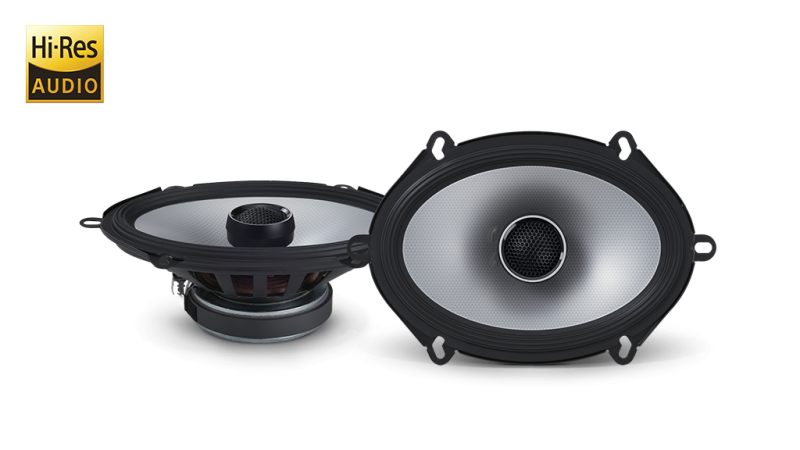

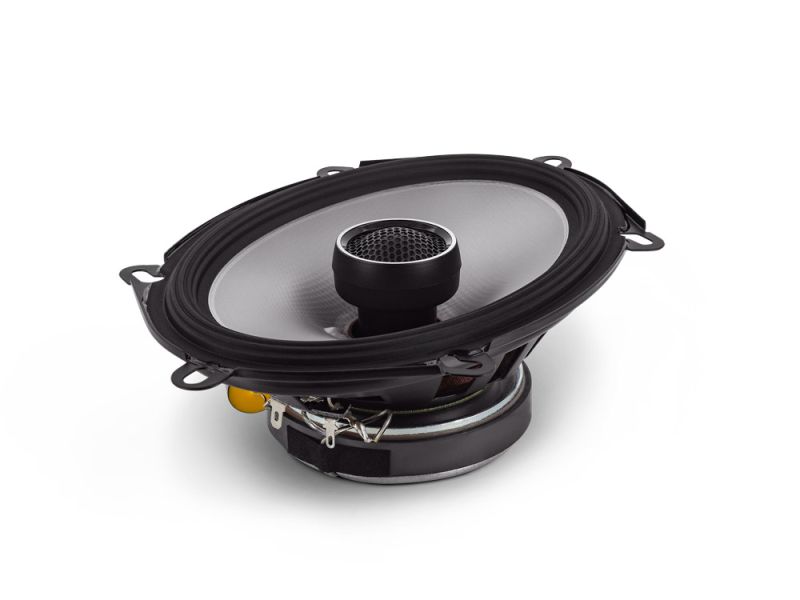

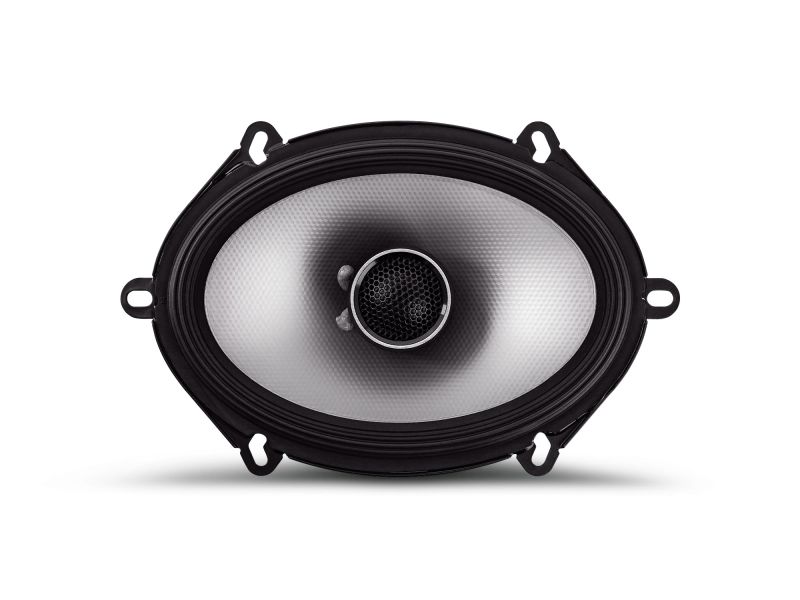

Alpine S2-S68
S-Series 6×8 Inch /15 cm x 200 cm/ Coaxial Hi-Res Audio Component Speaker System
- Brand: Alpine
Quick Buy
Just 4 fields to fill in
Features
Woofer
- 6×8″ (150cm x 200cm) Lightweight Glass Fiber Coaxial Speaker
- HAMR (High Amplitude Multi-Roll) Surround
- Large Voice Coil
- Magnet Material: Strontium Ferrite
Tweeter
- 1″ Extended-Range Soft Dome Tweeter
- Magnet Material: Ferrite
- Tweeter Grill: Punched net
Crossover Network
- Tweeter: High Grade Audio Poly Capacitor
Specifications
Power Handling
- Peak Power: 230 Watts
- RMS Power: 75 Watts (CTA-2031 Compliant)

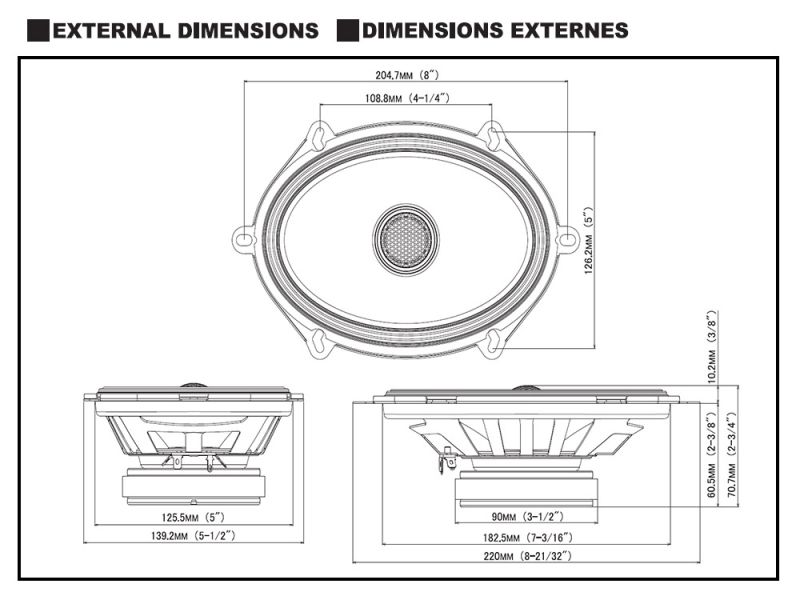

Dimensions
- Frame 220 mm x 140mm
- Cutout Diameter: 183mm x 126mm
- Mounting Depth: 60.5 mm
- Mounting Height: 10.2 mm
- Magnet: 90.0 mm
General
- Frequency Range: 75 Hz – 40 kHz
- Impedance: 4 Ohms (DCR 3.1 ohms)
- Sensitivity: 88 dB SPL (1W @1m)
- Recommended Amplification: up to 75W RMS per channel
-
Design:2-way
-
Max. Power:230 W
-
RMS Power:75 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:60.5 mm
