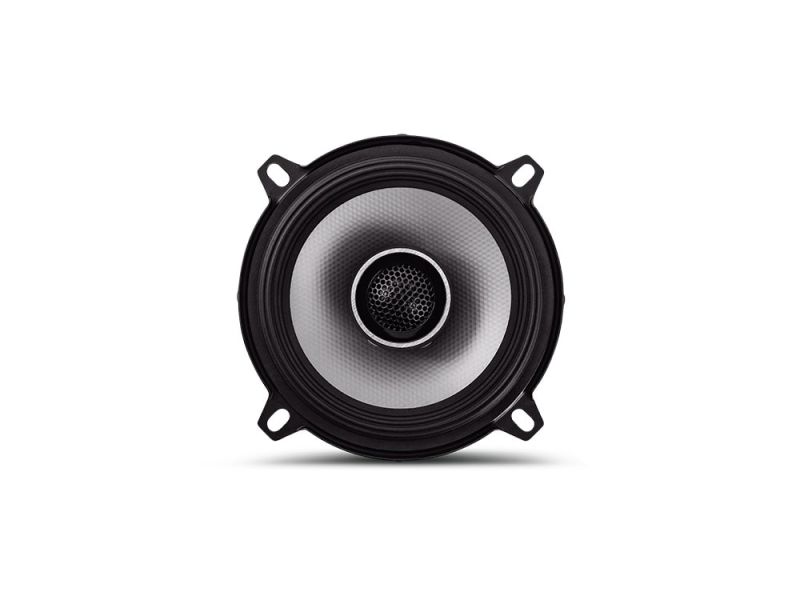

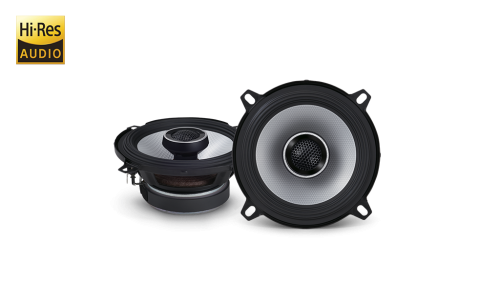

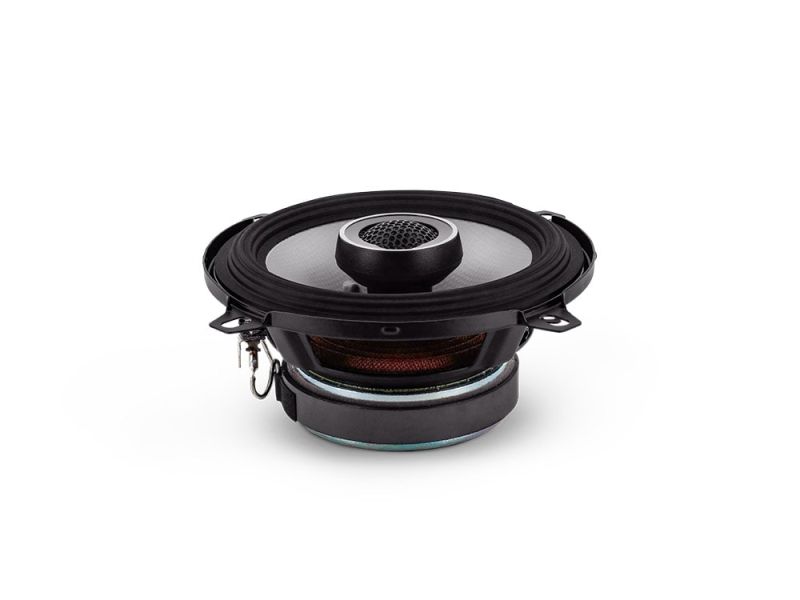

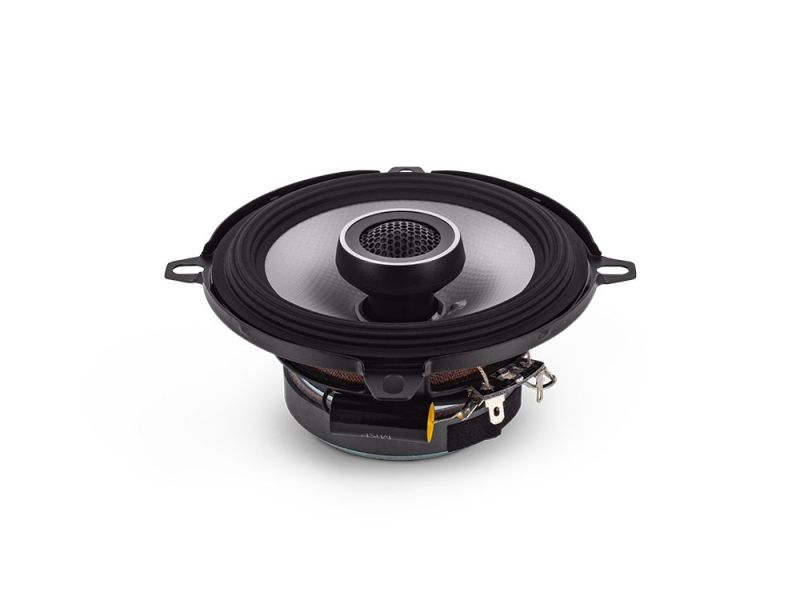

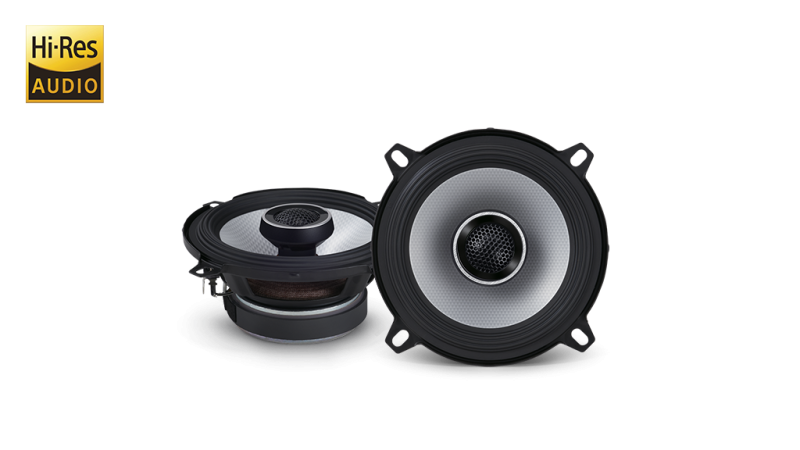

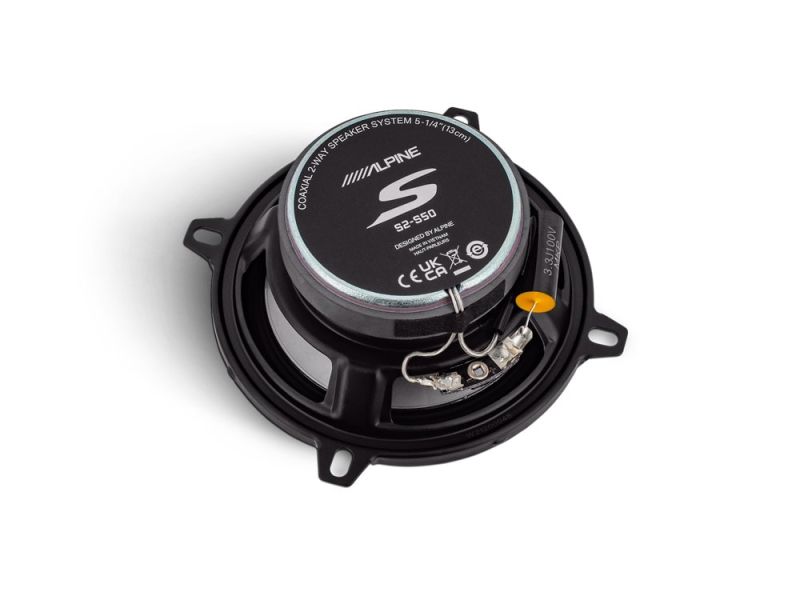

Alpine S2-S50
S-Series 5 Inch /13.5 cm/ 2-Way Hi-Res Audio Coaxial Speaker System
- Brand: Alpine
Quick Buy
Just 4 fields to fill in
Features
Woofer
- 5″ (130mm) Lightweight Glass Fiber Composite Coaxial Speaker
- HAMR (High Amplitude Multi-Roll) Surround
- Large Voice Coil
- Magnet Material: Strontium Ferrite
Tweeter
- 0.8″ Extended-Range Soft Dome
- Magnet Material: Ferrite
- Application Type: Fixed
- Grill: Perforated Net
Crossover Network
- Tweeter: Hi Grade Audio Poly-Capacitor
Specifications
Power Handling
- Peak Power: 170 Watts
- RMS Power: 55 Watts (CTA-2031 Compliant)

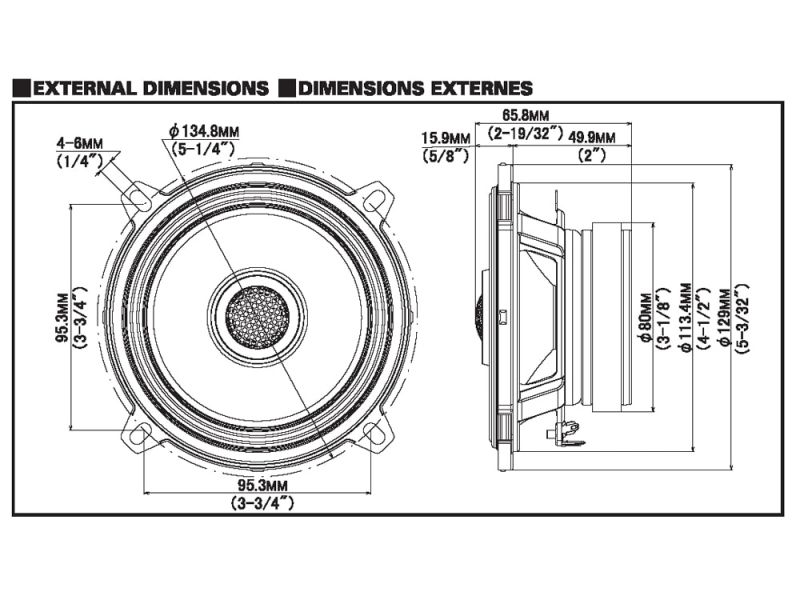

Dimensions
- Frame 129 mm
- Cutout Diameter: 114 mm
- Mounting Depth: 50 mm
- Mounting Height: 16 mm
- Magnet: 80.0 mm
General
- Frequency Range: 65 Hz – 40 kHz
- Impedance: 4 Ohms (DCR 3.1 ohms)
- Sensitivity: 87 dB/W SPL (1W @ 1m)
- Recommended Amplification: up to 55W RMS per channel
-
Design:2-way
-
Max. Power:170 W
-
RMS Power:55 W
-
Sensitivity:87 dB/W/m
-
Mounting Depth:50 mm
