ACV 621094-35-2 2-DIN Kit Citroen/Fiat/Opel/Peugeot Infodapter

Vehicle application:

Citroen
Citroen Jumper (250) 05/2014 - 2022
Citroen Relay (250) 2006- 2022

Fiat
Fiat Ducato (ZAF 250) 05/2014 -11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 2022

Peugeot
Peugeot Boxer (Y) 09/2014 - 2022

Colour: piano black

Einbauausschnitt Radiodisplay: 172mm x 98,5mm

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse

SWC

vehicle settings

*remove Daiichi harness adapter > radio slot driver side OEM connector

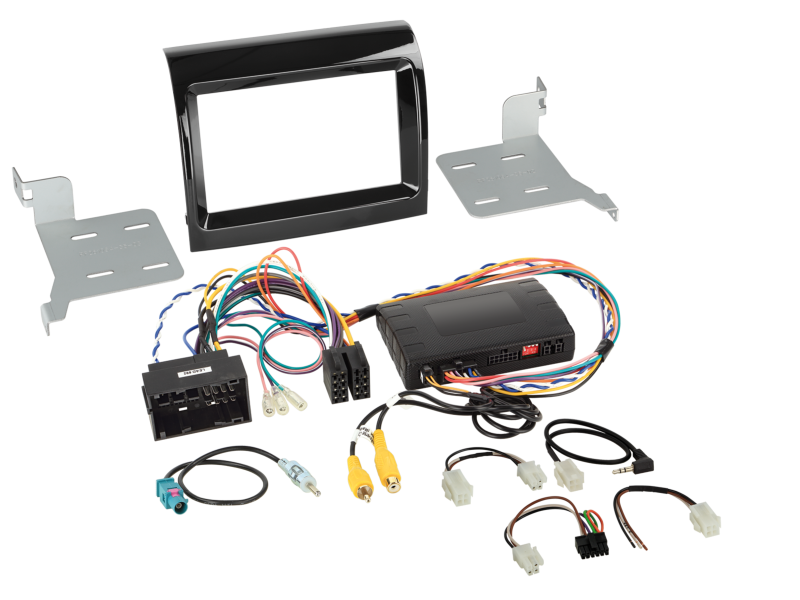

Scope of delivery:

2-DIN facia plate Citroen/Fiat/Opel/Peugeot 2014-2022 piano: 381094-35-1
Infodapter Fiat 500/500L/Ducato 52 Pin Fiat: 43uft01
SWC ACV lead > Multilead different HU: 42ctmultilead
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01

Note:

vehicles with SWC

CAN Bus

connector: 52 Pin Fiat
connector: Fakra (f) > DIN(m)

vehicles with Continental/Mopar 250VP1 / 250 VP2 OEM HU
vehicles with Daiichi OEM HU*

vehicles with Euro6 emission standard

date/time/vehicle settings supported

high beam assistance not supported
driver assistance system not supported

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU
