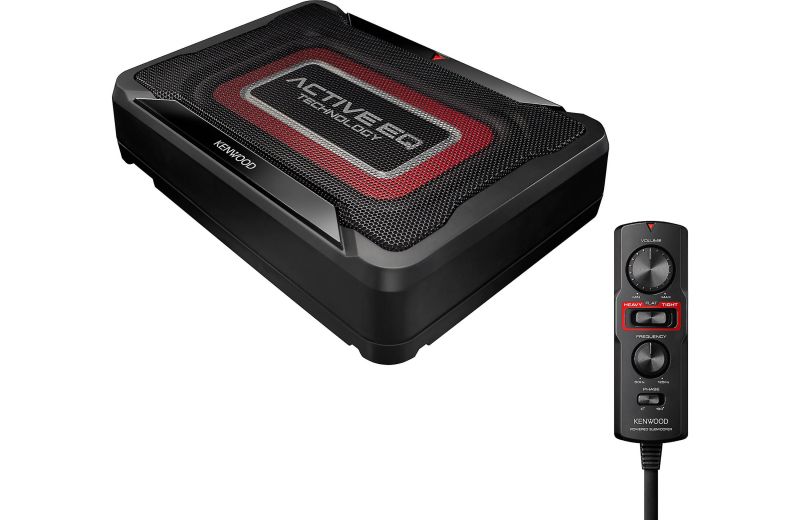

Kenwood KSC-PSW7EQ
Compact Powered Subwoofer

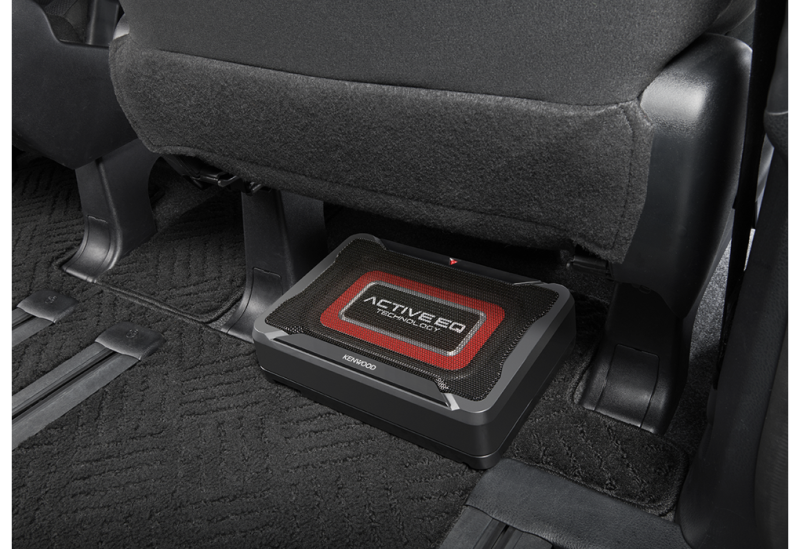

The compact die-cast enclosure allows installation almost anywhere, including tight spaces such as under a seat or panel.
- Brand: Kenwood
Quick Buy
Just 4 fields to fill in
Key Features
| 160W Maximum output power for deep and intense bass sound. |

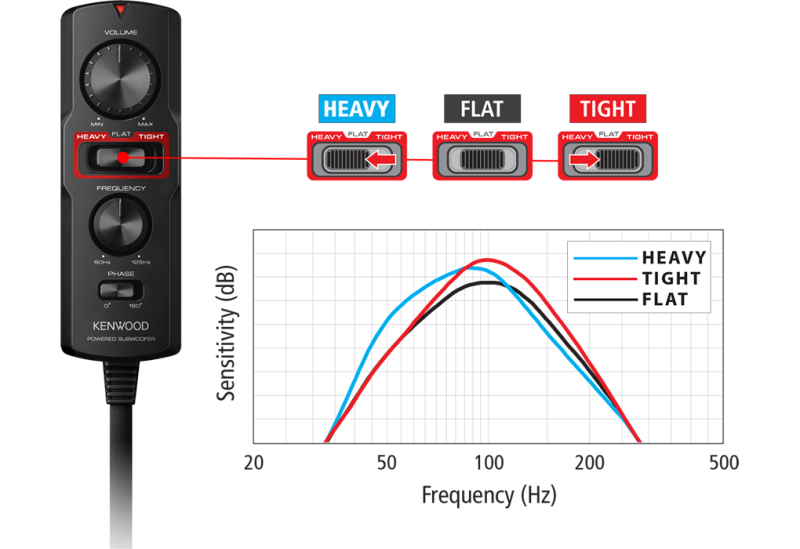

| ACTIVE EQ TECHNOLOGY with three types of bass to match the music of various genres. |
| 200 x 130mm Aluminum woofer cone with micro-step shape diaphragm surrounding. |
| High efficiency class-D amplifier for rich and clean bass sound. |

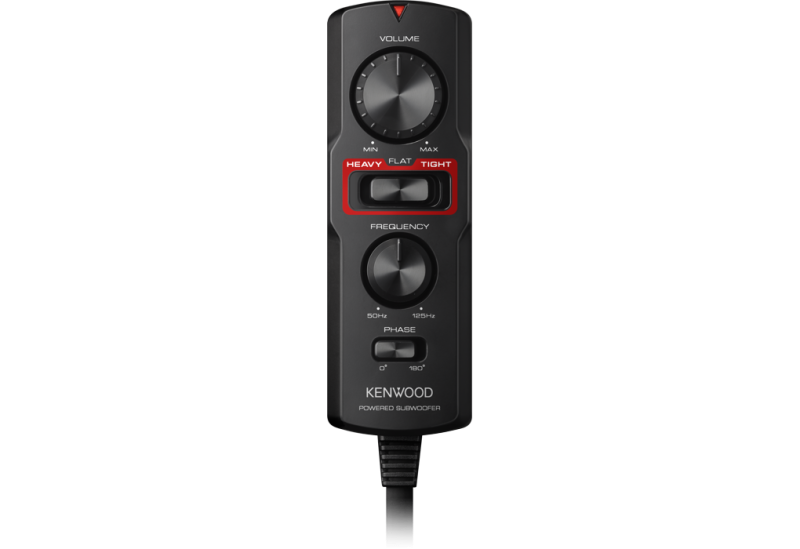

| Wired remote with Power indicator, Active EQ switch, Volume & Frequency contr. & phase switch. |
| Line-in & speaker level input with signal sensing turn-on. |

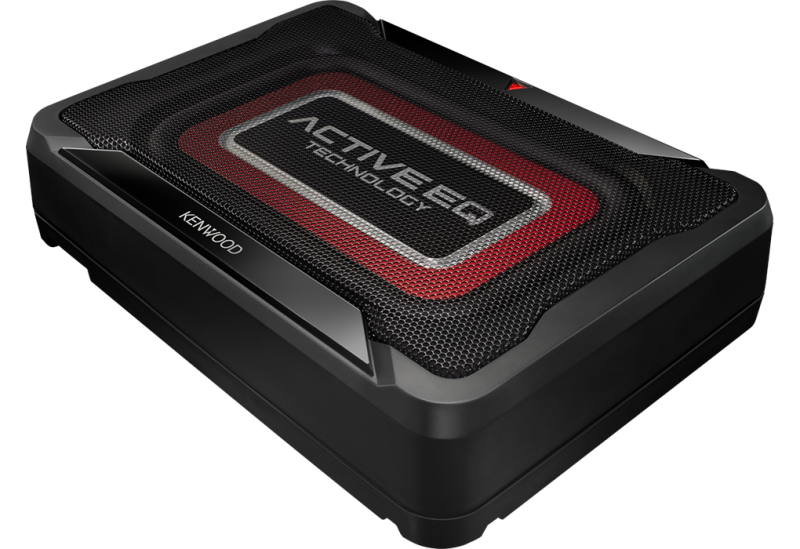

| Compact aluminum die-cast enclosure (280 x 70 x 220mm). |

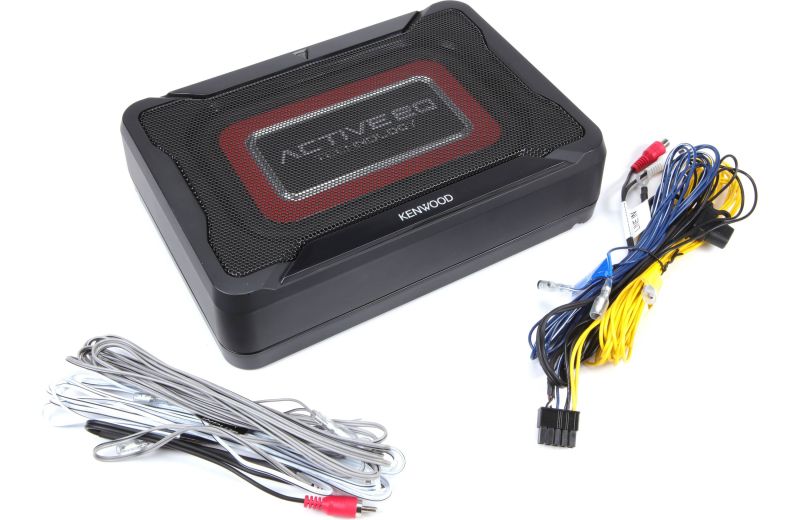

| Connection cables and Installation brackets included. |
Speaker Features
| Speaker System | Active subwoofer system |
| Maximum Output Power | 160 W |
| Speaker Size | 200 x 130mm |
| Wired remote included | Yes |
| Amplifier Included | Built-in |
| Enclosure type | Aluminum die-cast |
| Enclosure size (BxHxD) | 350 x 75 x 240 mm |
| Enclosure net weight | 2.6 kg |
Amplifier Features
| Class D Amplifier | Yes |
| Maximum power output | 160W |
| Low-pass Filter | Yes |
| Phase inverter 0°(Normal) / 180°(Reverse) | Yes |
| Built-in Equalizer | Yes |
| Power Indicator | Yes |
| Signal Sensing Turn-on | Yes |
| Line in | RCA |
| Speaker level Input | Yes |
| Chassis | Aluminum Die-cast |
| Yes | |
| Wired Remote Support | Power indicator / Volume / Active EQ / Frequency / Phase |
Speaker/woofer Specifications
| Woofer Cone material | Aluminum |
| Woofer cone dimensions | 200 x 130mm |
| Speaker Surround | High-roll urethane |
| Sensitivity | 89dB/W/m |
| Frequency Response | 40Hz ~ 200Hz |
| Speaker Impedance | 1Ω |
Amplifier-Specifications
| Maximum power output (4Ω) | 160W x 1 |
| Low-pass Filter | 50Hz ~125Hz (-18dB) |
| Line-in Sensitivity | 20 mV |
| Speaker Input Sensitivity | 400 mV |
| Line-in Impedance | 22 kΩ |
| Speaker Input Impedance | 10 kΩ |
| Signal to Noise Ratio | 90dB |
| Frequency response (+0dB, -3dB) | 35Hz ~ 150Hz |
| Operating voltage | 14.4V (11V ～ 16V allowable) |
| Maximum current consumption | 5.9A |
Accessories
| Bracket | Type1 x 1, type2 x1 |
| Remote control | Wired remote (5.0m) |

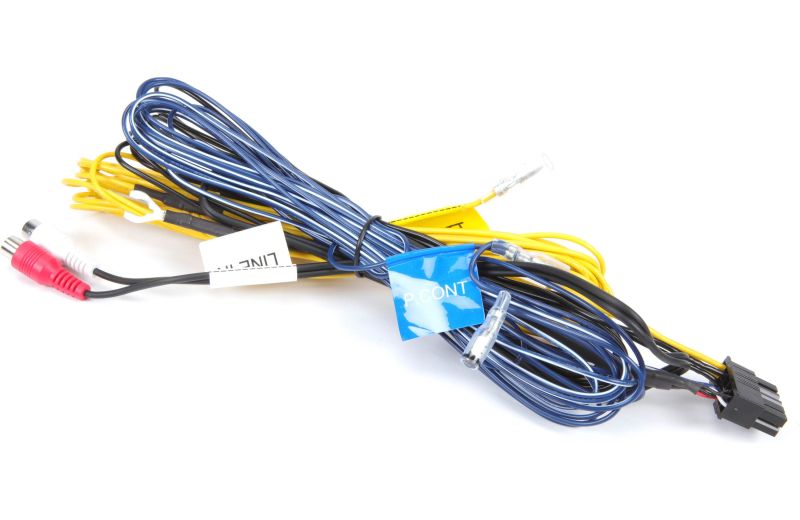

| 10-pin connector cord (5.0m) | |

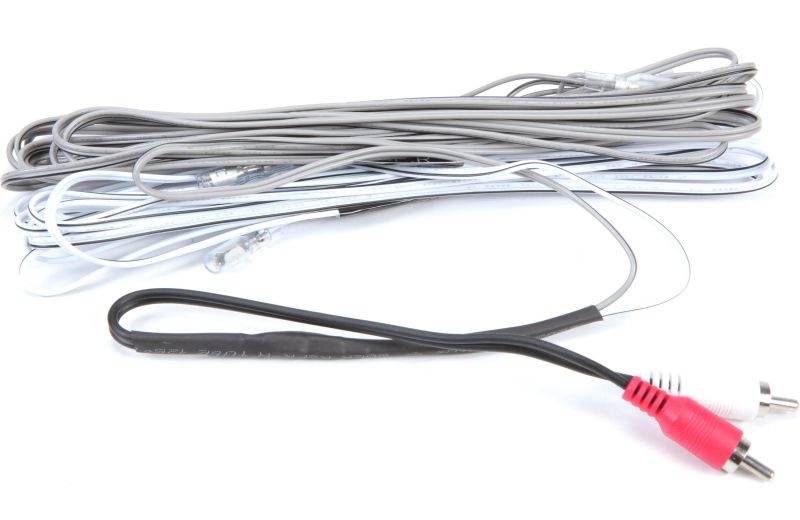

| Speaker cord: (4.3m) | |
| Double side adhesive tape for remote control | |
| Screws (Parker-type) | Ø 5 x 12mm, 2 pieces |
| Screws (Parker-type) | Ø 3 x 10mm, 2 pieces |
| Screws (Parker-type) | Ø 5 x 16mm, 2 pieces |
-
Maximum Output Power:160 W
-
RMS Power per channel at 4 ohm:80
-
Built-in filters:Low-pass filter (LPF)
-
Minimum Impedance:4 Ohm Ohm
-
Amplifier Class:Class D
