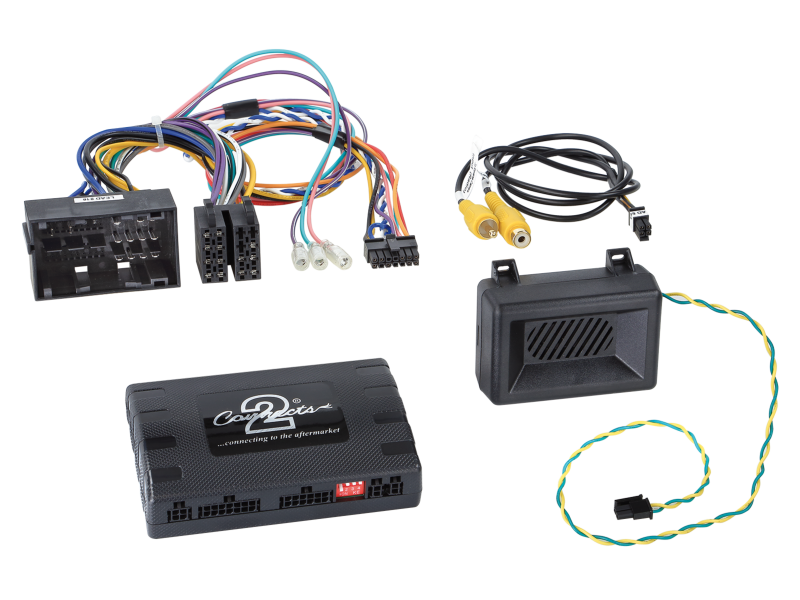

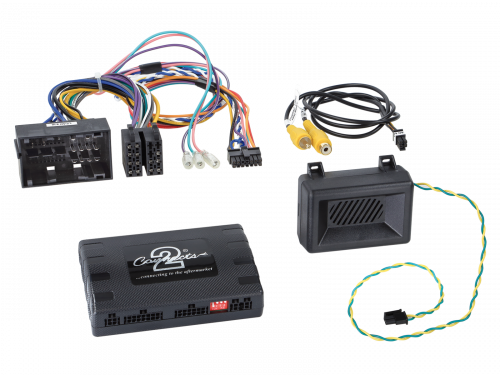

ACV 43ujp01 Infodapter Jeep Renegade

Infodapter Jeep

The Infodapter will retain several vehicle display functions when the OEM radio or navigation system is replaced.
Vehicle specific settings are accessible and will be displayed on the aftermarket head unit.

SWC buttons are essential to get access to the Infodapter configuration menu.

Not all Functions will be retained such as trailer assist, E-Call etc.

Please check the OEM HU and vehicle settings for available settings bevore installation
Please check all functions bevor final installation.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

vehicles with SWC

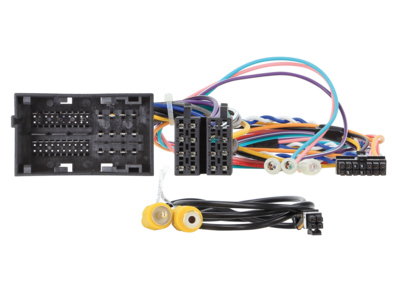

connector: 52 Pin Fiat

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear vievw camera input of the HU

not for vehicles with OEM:

optical fiber system
without OEM HU
without HU preperation
with 12 PDC sensors

visualisation 8 PDC sensors supported
visualisation climatronics not supported

setting:

if the Odometer is flashing:
you will need to enter the menu of the Infodapter.
press and hold the speech button for a few seconds
from main menue go to Infodapter settings
Preferences
Config Menu
there try several Settings from 0 - 3
(most used Setting 2, please try first)
After changing the setting you need to restart the interface - don't cut the power supply and let the car go to rest for 15 - 20 Minutes. This will allow the interface to sents a fresh command to the vehicle.

Vehicle application:

Jeep Renegade 2015 - 2021

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse
Parkingbreak

SWC
vehicle settings

HU application:

SWC ACV lead > Alpine: 42ctalpinelead
SWC ACV lead > Parrot: 42ctasteroidlead
SWC ACV lead > Bosch-Blaupunkt >2010: 42ctblaupunktlead
SWC ACV lead > Blaupunkt/China HU/ Kenwood: 42ctchinahulead
SWC ACV lead > Clarion: 42ctclarionlead
SWC ACV lead > JVC: 42ctjvclead
SWC ACV lead > Kenwood: 42ctkenwoodlead
SWC ACV lead > Multilead different HU: 42ctmultilead
SWC ACV lead > Panasonic: 42ctpanasoniclead
SWC ACV lead > Blaupunkt/Kenwood/Pioneer: 42ctpioneerlead
SWC ACV lead > Blaupunkt/Kenwood/ Sony: 42ctsonylead
SWC ACV lead > XZent/Zenec: 42ctzeneclead
