ACV 42ctmultilead Multilead different HU

Radio specific lead ACV > different HU

HU manufacturers use different variants for connecting a steering wheel remote control interface.
Depending on the manufacturer and device, single-cable controls, two-cable and multi-cable controls as well as jack controls can be used.

The connection variant can be found in the manual of the HU manufacturer.
All connections must be done before connecting the interface to the vehicle.
If necessary, the SWC function must also be programmed in a HU menu according to the HU manufacturer manual.

Check for function before final assembly.



Note:

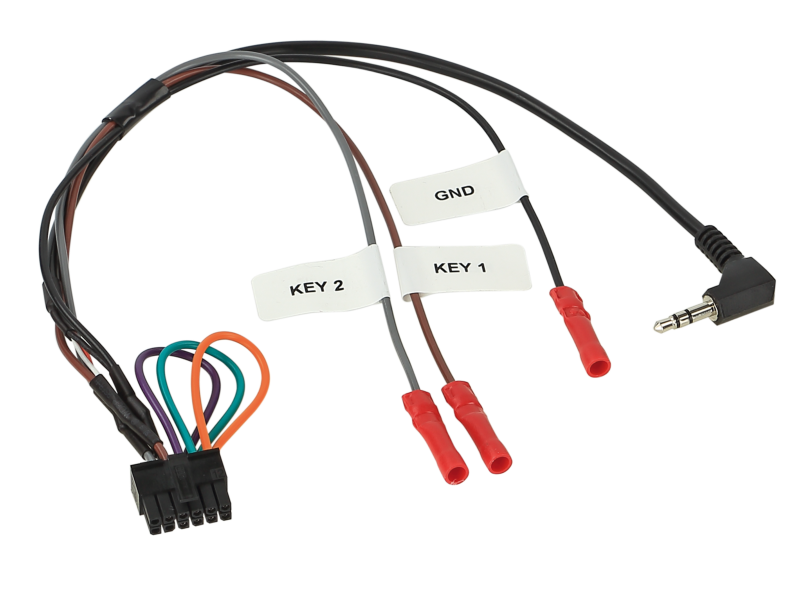

connector: 12 Pin Microfit > 3,5mm Jack, multi lead connector

SWC radio specific lead ACV SWC interface
SWC radio specific lead Infodapter

Usecase:

Alpine 3,5mm jack connector
Blaupunkt 2010> Key1 / Key2 / (GND) connector
Blaupunkt 2010> 3,5mm Jack connector
China HU Key1 / Key2 / (GND) connector
Clarion 3,5mm Jack connector
JVC 3,5mm Jack
JVC single lead connector
Kenwood single lead connector
Kenwood 2017> 3,5mm Jack connector
Kenwood 2020> Key1 / Key2 / GND connector
Panasonic single lead connector
Pioneer 3,5mm Jack connector
Sony 3,5mm Jack connector
XZent single lead connector
Zenec single lead connector
