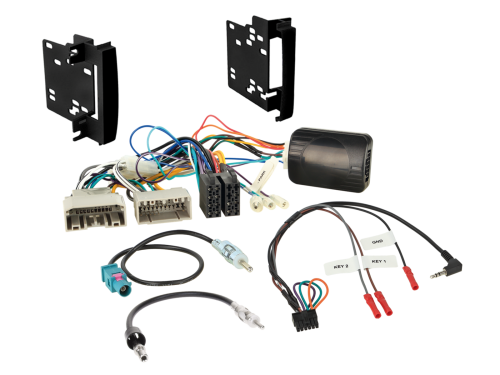

ACV 621145-07-1 2-DIN 8-inch Installation Kit with CAN Interface and Steering Wheel Remote Control Interface for Chrysler/Dodge/Jeep/VW
Vehicle application:
Chrysler
Chrysler 200 2011 - 2014
Chrysler 300/300C 2008 - 2010
Chrysler Aspen 2008 - 2009
Chrysler Sebring 2007 - 2010
Chrysler Town and Country 2008 - 2016**
Dodge
Dodge Avenger 2008 - 2014
Dodge Caliber 2009 - 2012
Dodge Challenger 2008 - 2014
Dodge Charger 2008 - 2010
Dodge Dakota 2008 - 2011
Dodge Durango 2008 - 2009**
Dodge Grand Caravan 2008 - 2017
Dodge Journey 2009 - 2010*/**
Dodge Magnum 2008 - 2009
Dodge Nitro 2007 - 2011
Ram 1500 2009 - 2011**
Dodge Ram 2500/3500 2010 - 2012**
Dodge Ram Chassis Cab 2011**
Dodge RAM C/V Tradesman 2012 - 2015**
Jeep
Jeep Commander 2008 - 2010
Jeep Compass 2009 - 2017
Jeep Grand Cherokee 2008 - 2010
Jeep Patriot 2009 - 2017
Jeep Liberty 2008 - 2012
Jeep Wrangler 2007 - 2017*
Jeep Wrangler (JK body style) 2007 - 2018*
Lancia
Lancia Voyager 2011 - 2015
Mitsubishi
Mitsubishi Raider 2008 - 2009
VW
VW Routan 2009 - 2013
Colour: black
Following signals are provided:
Park brake
Reverse
Ignition
SWC
OEM amplified system (no fader)
*modifications to radio cavity required

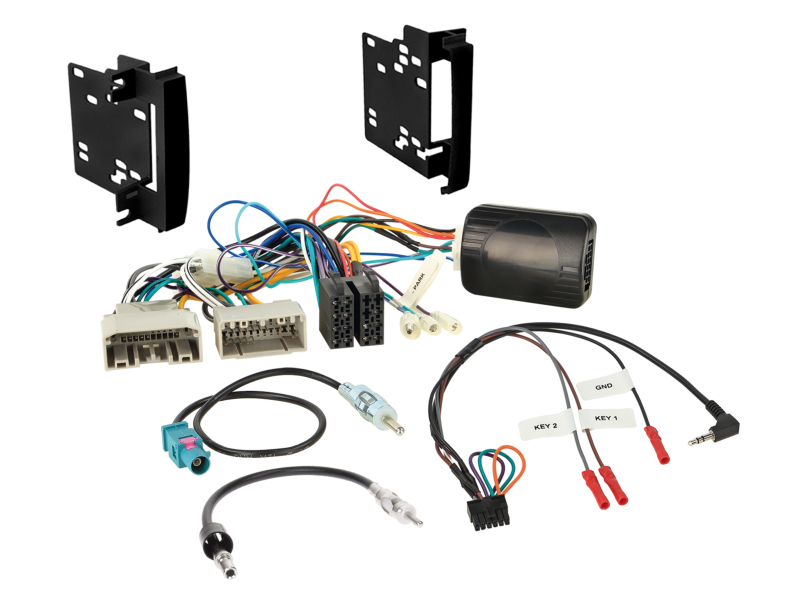

Scope of delivery:
2-DIN facia plate Chrysler/Dodge/Jeep/VW black: 381145-07
SWC Chrysler/Dodge/Jeep/Lancia/Mitsubishi/VW: 42sch00c
SWC ACV lead > Multilead different HU: 42ctmultilead
Antenna adapter USA1 > DIN(m) US vehicles: 1531-01
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Optional:
Rear View Camera Adapter Chrysler/Dodge/Jeep/Mitsubishi/VW: 771031-1030
**Rear View Camera Adapter / RSE Adapter Chrysler/Dodge/Jeep: 771030-1030
Note:
CAN Bus
connector: 22 Pin Chrysler Stecker // 24 Pin Chrysler
connector: Fakra(m) > DIN(m)
connector: USA1 > DIN(m)
vehicles with/without OEM amplifiedsystem
blue/white: +12V swiched amp remote
blind spot not supported
PDCnot supported
Speed pulse not supported
OEM amplified system fader not supported
check telephone audio/ Sat Nav Audio change front/rear connection
