Key Features
| Rear / Front Camera for DMX9720XDS |
| High-Definition Imaging (1280 x 720px) |
| HDR (High Dynamic Range) |
| IP67 Waterproof and dustproof |
| Wide angle lens, focal length: 1.86mm F:2.0 |
| Horizontal 180°/ Vertical 103° angles of view |
| HD-TVI output signal |
| Total cable lenght: 9 meter |

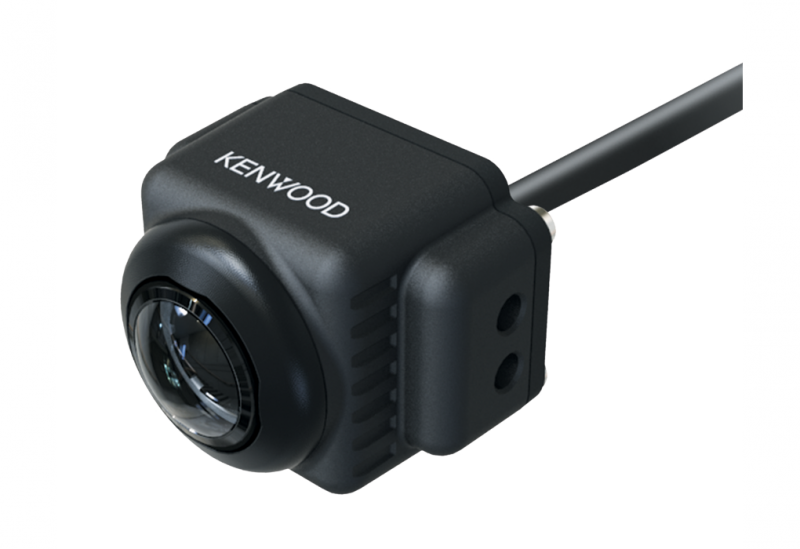

Camera Unit
| Camera Type | 1/3.8-inch colour CMOS sensor |
| Number of pixels | 1280 (Vertical) x 720 (Horizontal) |
| Effective number of pixels roughly | 1300000 |
| High sensitivity Pixels | Yes |
| Output video | HD-TVI |
| Waterproof chassis | Yes |
| Mounting system | Fix mount base |
| Installation positions | Front or rear |
| Rear view switching | Reverse line |
| High voltage protection | Yes |
| Wide angle lens | Yes |
| Focal length | f: 1.86mm, F value 2 |
| Horizontal Angle view | +/- 180° |
| Vertical Angle View | +/- 103° |
| Illumination range | approx. 1 to 100 lux |
| White balance | HDR |
| Video signal format | HD-TVI |
| Camera cable to power supply box | 3 meter |
| DC cord | 6 meter |
General Specifications
| Operating voltage | 12V (12 ~ 24V Allowable) |
| Dimensions Hideaway Unit (WxHxD) | 69.2 x 23.6 x 15.5mm |
| Dimensions (WxHxD) | 31.1 x 23 x 25.2mm |
| Weight | 33.2 gr. |
| Operation Temperature Range | --30°C ~ 85°C |
| Instruction Manuals | Multi-language quick Guide |
