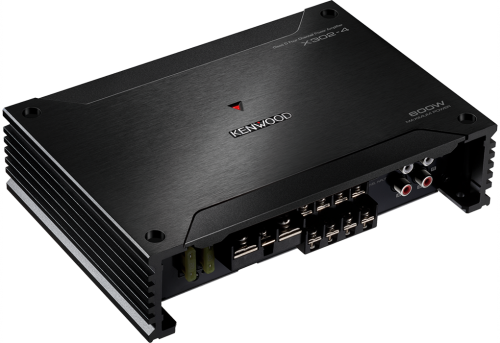

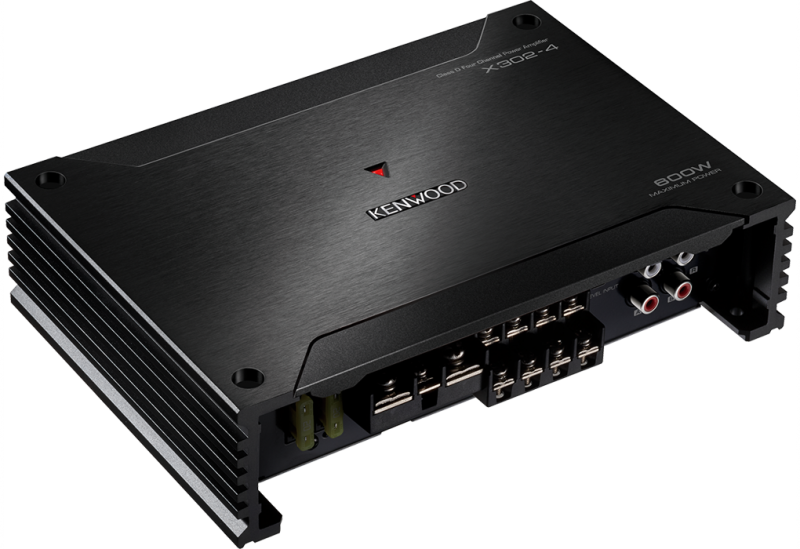

Kenwood X302-4
X302-4
X-Series, Class D 4-Channel Power Amplifier
Ultra-high grade range amplifi ers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.
- Brand: Kenwood
Key Features
| 4-channel digital power amplifier |
| Variable high & low pass filter |
| Speaker Level Input |
| Signal sensing Turn-on |
| 2 ohms load capability |
| CEA-2006 compliant |
| Hi-Res Audio compliant |
| One side terminals for smart installation |
| Screw-type terminals |
Amplifier Features
| Class D Amplifier | Yes |
| Full Range Digital Amplifier | Yes |
| Load Capability | 2Ω Stable |
| Rated power output (4Ω) | 50W x 4 (4Ω) |
| Rated power output | 75W x 4 (2Ω) |
| Bridged power output (4Ω) | 150W x 2 |
| High-Resolution Audio certified | Yes |
| CEA-2006 Compliant | Yes |
| Low-pass Filter | Yes |
| High-pass Fliter | Yes |
| Switched Mode Power supply | Yes, with Power MOS-FET |
| Signal Sensing Turn-on | Yes |
| Speaker level Input | Yes |
| Single Side Terminals | Yes |
| Die-Cast Aluminium Heat Sink | Yes |
Amplifier-Specifications
| Rated power output (4Ω, 14,4V) | 50W x 4 (20Hz ~ 20000Hz, 1%THD) |
| Rated power output (2Ω, 14,4V) | 75W x 4 (1000Hz, 1%THD) |
| Rated power output (CEA-2006) | 50Watts RMS x 4 at 4 ohms and 1% THD |
| Low-pass Filter | 50~200Hz (-24dB/oct) |
| High-pass Fliter | 50~200Hz (12dB/oct) |
| Bass Boost Circuit | 40Hz, 18dB (B-Channel) |
| RCA Input Sensitivity | 0.2 ~ 5V |
| Input Impedance | 10kΩ |
| Signal to Noise Ratio | 100dB |
| Signal to noise ratio (CEA-2006) | 80dBa (Reference: 1 Watt into 4 Ohms) |
| Frequency response (+0dB, -1dB) | 20Hz ~ 50000Hz |
| Freq. resp. (+0dB, -3dB) (SUB) | 20Hz ~ 200Hz |
| Operating voltage | 14.4V (11V ～ 16V allowable) |
| Maximum current consumption | 20A |
| Installation Size (WxHxD) | 213 x 53 x 149 (mm) |
| Weight | 1.4kg |
-
Maximum Output Power:75 W
-
RMS Power per channel at 2 ohm:75 W
-
RMS Power per channel at 4 ohm:50
-
Built-in filters:
-
Minimum Impedance:2 Ohm Ohm
-
Amplifier Class:Class D
-
General Features:Speaker level input
