Key Features
| 3.0" wide full colour TFT LCD screen. |
| Wifi Built-in for Wireless LAN & App Link |
| 3-Axis G-sensor built-in |
| GPS receiver built-in |
| F1.6 Bright Lens with 126°(diagonal) wide viewing angle |
| Polarization filter included |
| Quad HD Recording Resolution (2560 x 1440px @ 30fps) |
| Micro SDHC/SDXC card slot (8 ~ 256GB), 16GB card included |
| Rear-Cam in / 2 Channel recording |
| Free PC & smartphone (IOS & Android) application available. |
| Magnetic quick release mount |
| Parking surveillance mode with optional hardwired kit |

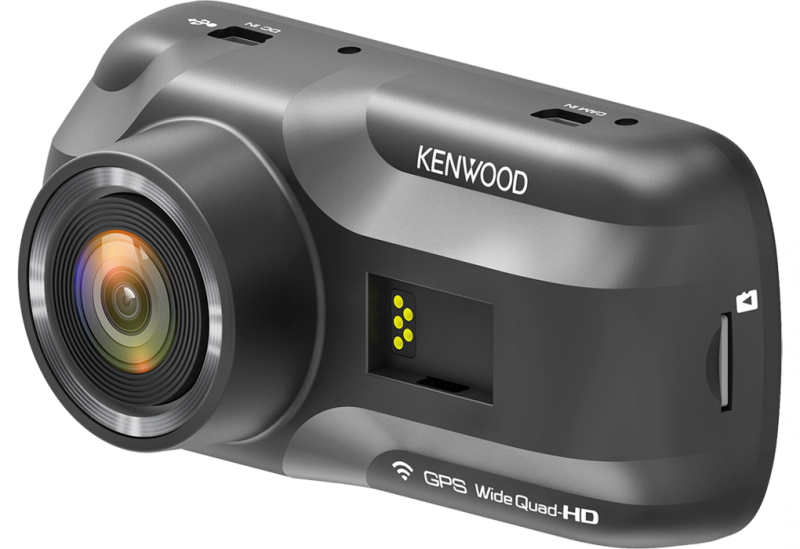

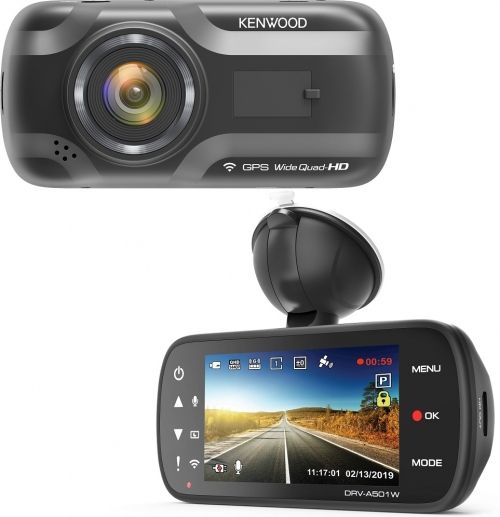

Dashboard Camera
| Image Sensor | 1/2.8 CMOS |
| Lens Type | F1.6 Fixed focus lens |
| Diagonal field of view | 126° |
| Horizontal field of view | 126° |
| Vertical field of view | 110° |
| LCD screen | 3,0" full colour TFT |
| Recording Resolution | Wide Quad HD (2560 x 1440) Resolution (3.7M) (max) |
| 2 Channel Recording Resolution | 2 x Full HD (Front/Rear) |
| Event Recording Mode | Yes |
| Continuous Recording | 1min(default), 3min or 5min files |
| Manual Recording | Yes |
| Frame Rate | 30 fps |
| Picture Format | JPEG |
| Picture Size | 2560 x 1440 Pixels |
| Video Format | H.264 (MOV) |
| Audio File Fomat | Linear PCM |
| G-Sensor Built-in | -4G to +4G (0,1G steps) |
| HDR record enhancement | On / Off (Default) |
| Built-in GPS Receiver | Yes |
| Parking surveillance mode | with optional hardwired kit (CA-DR1030) |
| Wireless LAN & App Link | Yes |
| Rear camera ready / 2 channel recording | ready for optional KCA-R100 |
| Recording Media | micro SDHC/SDHC card Class 10 |
| Maximum Size Recording Media | 8GB up to 256 GB |
| Menu Language | EN/GE/FR/DU/IT/ES/PT/RU/PL/CZ/RO |
| Operation voltage | 5 VDC |
| Current Consumption | 480 mA |
| Dimensions | 106 x 50.5 x 40.5 mm |
| Weight | 102 gr (Camera Only) |
| Magnetic quick release mount | Yes |
| PC software downloadable | KENWOOD VIDEO PLAYER (PC & MAC) |
| Smartphone Application downloadable | KENWOOD DASC CAM MANAGER (IOS & Android) |
| USB port | mini USB-B type |
| HDMI Out | Yes |
Accessories
| DC cable | Cigar lighter car charger adapter (12~24VDC, 4m) |
| Cable Clip | 4 pieces |
| USB cable | 110 cm |
| Adhesive car mount bracket | Yes |
| Suction-cup car mount bracket | Yes |
| Spare Adhesive pad | 2 pieces |
| Polarization Filter | Yes |
| Multi-Language Instruction Manual Included | Quick-Guide |
| Manuals Downloadable | Yes |
