Key Features
| 17cm, 2-Way / 2-Speaker System |
| Diamond Array Pattern, Polypropylene woofer Diaphragm |
| Steel basket, rubber surround |
| 30mm Balanced dome tweeter |
| 330W Peak Power |
| Accoustic Sound Harmonizer |
| Sound Field Enhancer |
| 0,5m speaker cord included |
| Grille assembly included |
Speaker Features
| Speaker System | 2-way 2-speaker |
| Peak Input Power | 330W |
| Rated Input Power | 100W |
| Speaker Size | 170mm |
| Speaker Cone Design | Diamond-Array pattern |
| Magnet Type | Ferrit |
| Terminals | Slide type |
| Installation Capabillity | Door/Rear Deck |
Speaker/woofer Specifications
| Woofer Cone material | Polypropylene (PP) Cone |
| Speaker Basket | Steel |
| Speaker Surround | Rubber |
| Sensitivity | 88dB/W/m |
| Frequency Response | 70Hz ~ 24000Hz |
| Speaker Impedance | 4Ω |

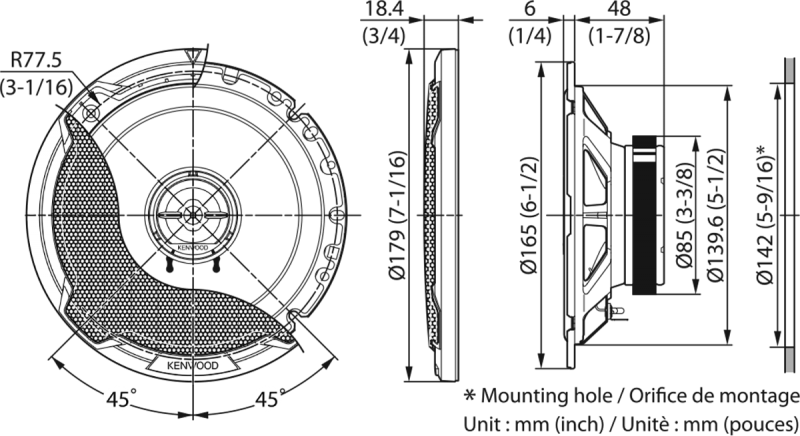

| Dimensions with Grill (WxHxD) | 179 x 179 x 66.4mm |
| Dimensions w/o Grill (WxHxD) | 165 x 165 x 54mm |
| Mounting Depth | 48mm |
| Mouting Hole Diameter Ø | 139.6mm |
| Tweeter Height | 6mm |
| Speaker Weight with Grille (pc.) | 813gr |
| Speaker Weight w/o Grille (pc.) | 733gr |
| Gross Weight | 1600gr |
| Weight of Magnet | 270gr |
Tweeter Specifications
| Cone Size | 30mm |
| Cone Material | Balanced Dome |
| Magnet Type | Neodymium |
Accessories
| Screws (Parker-type) | Ø 4 x 25mm, 8 pieces |
| Speed nut | φ 4, 8 pieces |
| Adhesive tape pad | 1 piece(s) |
| Grille assembly included | Yes |
| Speaker cable | 0.5m |
-
Design:2-way
-
Max. Power:330 W
-
RMS Power:100 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:48 mm
