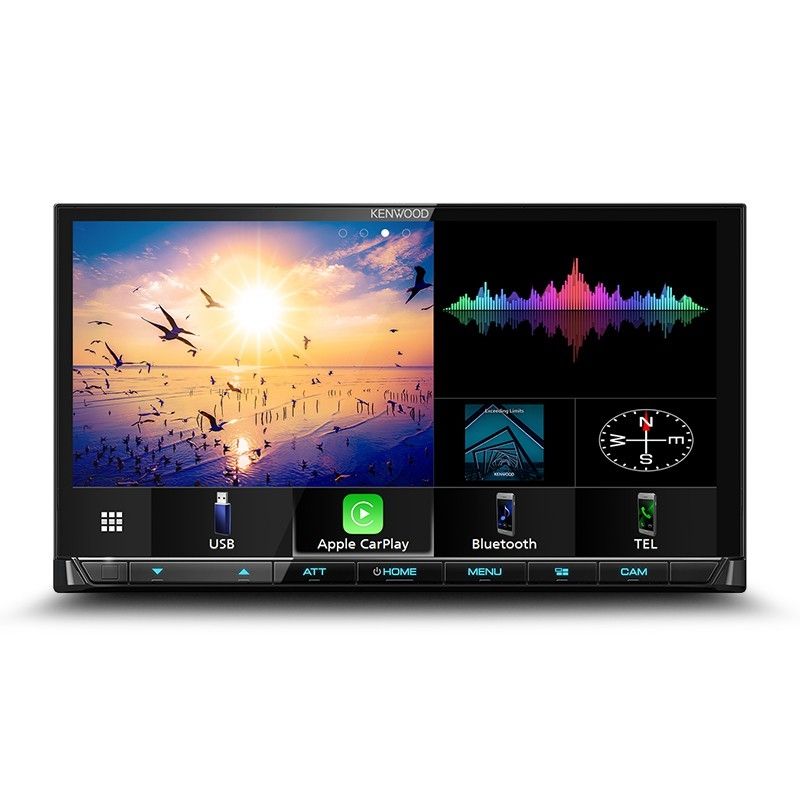

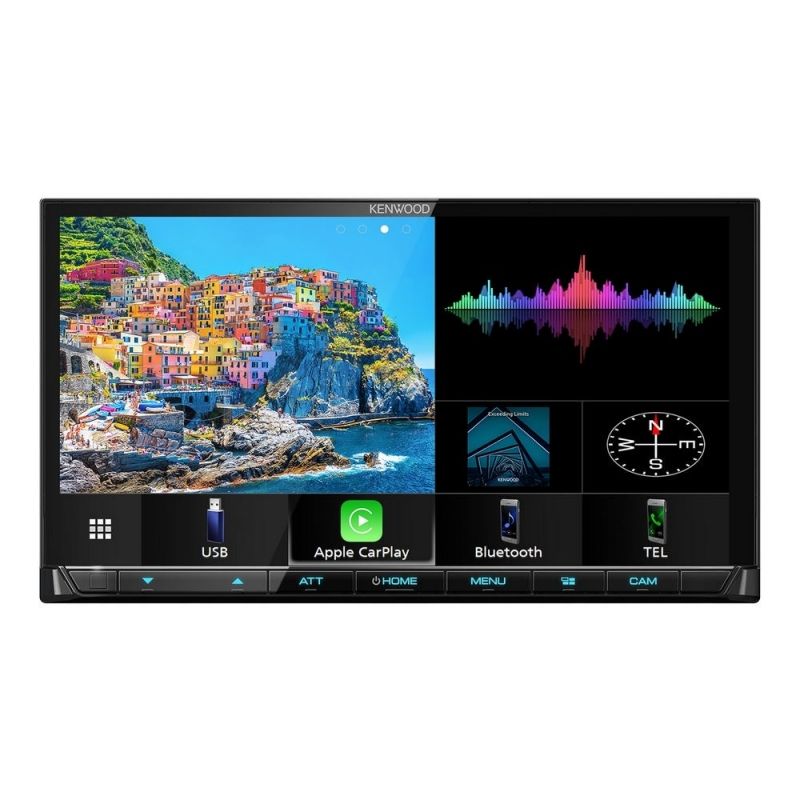

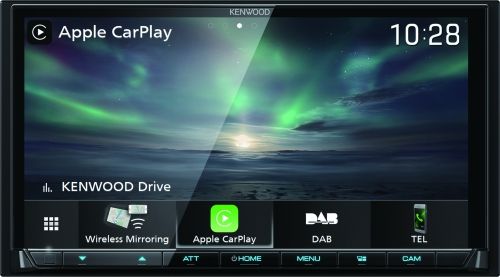

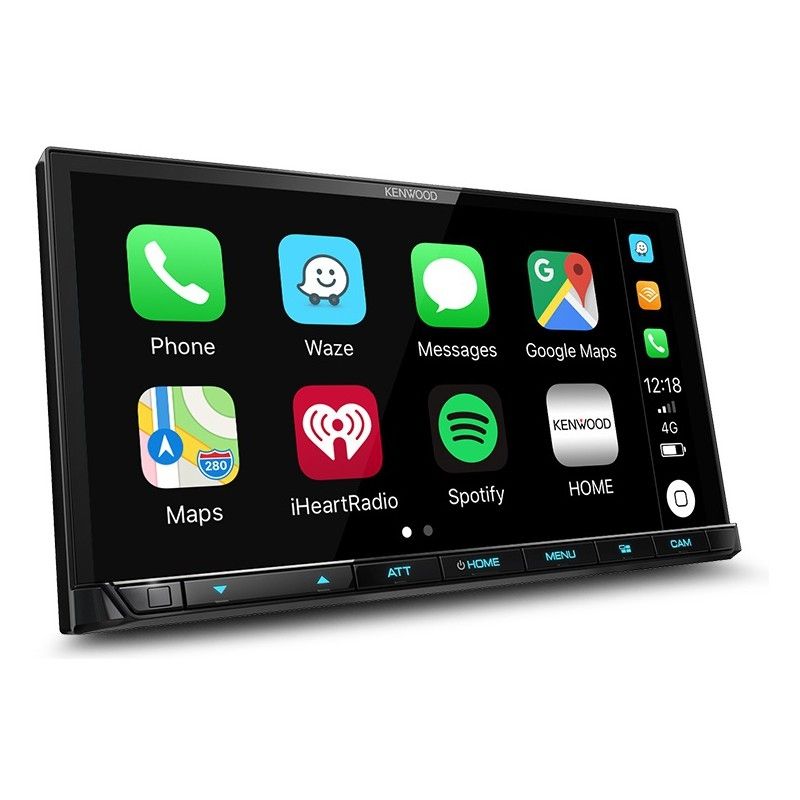

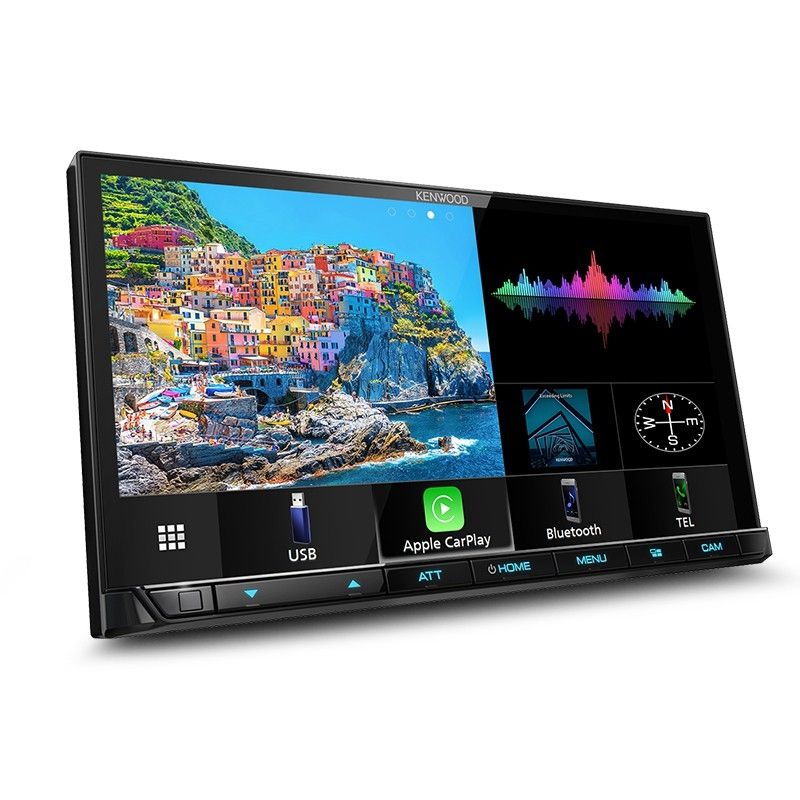

Kenwood DMX8019DABS

▼Monitor features:
• 7.0” WVGA with Capacitive Touch Screen.
• Protective Film with Anti-Glare, Anti-Fingerprint and Anti-Refelection.
• Variable colour LED key illumination.
• Dimmer sensor: Manual / Sync.
• Dimmer level: Auto / On / Off.
• Screen viewing angle adjustment to provide the best visibility at any viewing angle.

▼Graphical User Interface (GUI):
• Demonstration Mode.
• Customizable Multi Widget.
• Top / Home menu Background user customizable.
• Rear view camera interrupt with guide lines & caution on screen.
• Front Camera interruption (Off / 10sec. / 15sec. / 20sec.).
• Multi view camera control with optional CMOS-320.
• DashCam Link.
• Visual source mode: Mirroring / CarPlay / Android Auto.
• Selection of 22 langauges for menu & text:
English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian,
Portuguese, Chinese (simplified), Thai, Turkish, Arabic, Persian, Hebrew, Greek,
Indonesian, Malaysian, Polish, Czech, Hungarian.

▼Tuner features:
• FM / AM radio.
• FM: RDS / EON / Radio text plus.
• 20 presets (15 x FM / 5 x AM).

▼DAB+ tuner features:
• DAB+ (Band III) tuner.
• 15 presets.
• DAB-DAB / DAB-FM Auto Switch.
• Seamless DAB-FM blending.

▼Bluetooth features:
• High quality wide-band handsfree speech (HFP V1.7).
• Dual phone connection for full time connection.
• Audio streaming (A2DP) with AAC / SBC codec support.
• Music library browsing (AVRCP V1.6).
• Accessible phonebook entries (PBAP) with alphabet search.
• iPhone & Android auto pairing via USB.
• Works with ‘Amazon Alexa’ (Free available in App Store a Google Play).
• Music Mix ready (up to 5 BT units)
• KENWOOD Remote App Ready (Free available in App Store a Google Play).
• Spotify full control over Bluetooth for iPhone & Android.

▼Wifi features:
• Dual band 2.4GHz/5Ghz.
• Supports wireless Apple Car Play (*) .
• Supports wreless mirroring for Android (*) .

▼Supported CODEC’s:
• High Resolution Audio.
• Audio: MP3 / WMA / AAC / WAV / FLAC (192kHz / 24bit).
• Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / mkv.
• Images: JPEG / PNG / BMP for Wallpaper.

▼USB port features:
• 2 x USB 2.0 high speed ports.
• Max. 1,5A quick charge for selected phones (BC 1.2 compatible).
• Spotify full control over USB for iPhone.

▼Android features*:
• Connection over Bluetooth.
• Music playback over Bluetooth
• Wireless mirroring for Android ready.
• Works with Android Auto (via USB).
• Spotify full control over Bluetooth for Android.
• Waze App Works via Android Auto (via USB).

▼Ipod/Iphone features*:
• Connection over USB & Bluetooth
• Tag Information & Album Art display
• List Acces
• Random, Repeat & Skip PLay
• Works with Apple CarPlay Wireless (via Wifi) & Wired (via USB).
• Spotify full control over Bluetooth & USB for iPhone.
• Waze, WhatsApp, Spotify App works via Apple CarPlay.

▼Audio features:
• High quality audio components.
• Compatible with High-Res Audio.
• 50W x 4 Max power output.
• 3 RCA high level pre-outs (5,0V).
• Single / 2 Zone.
• Digital Sound Processor (DSP).
• Digital Time Alignment (DTA).
• 13-Band Graphical equalizer.
• 2Way / 3-Way X’Over.
• Speaker Size, Position & Room Size Control.

▼Video features:
• Selectable AV-Input: AV-in or Camera-in.
• HDMI input.
• AV-out source AV-in / USB (Selectable).
• Dedicated Rear Camera Input with parking guide-lines.
• Dedicated Front- or DashCam input (Selectable).
• DashCam link: Control & Play recorded dashcam (DRV-N520) movies on your unit.

▼Connectivity:
• Certified Wi-Fi.
• Selectable AV-Input: AV-in or Camera-in.
• HDMI input.
• AV-out: DVD / AV-in / USB (Selectable).
• Dedicated Rear Camera Input.
• Dedicated Front- or DashCam input (Selectable).
• Multi view camera control line in case of optional CMOS-320.
• DashCam link: Control & Play recorded dashcam (DRV-N520) movies on your unit.
• 2 x USB2.0, 20cm pig Tail (back-side).
• 3 RCA’s pre-outs (Front / Rear / Subwoofer).
• Revers sensor wire.
• Parking brake sensor wire.
• ACC Control wire.
• Dimmer sensor wire.
• Power-/Antenne-Control wire.
• 3rd Party TV control (Mini-jack).
• OEM Display Input/Output.
• Wired steering wheel remote adapter interface ready.
• Programmable direct steering wheel remote (resistor lader type only).
• Microphone input for Handsfree microphone: 3,5mm mini-jack.
• GPS aerial terminal.
• SMB type DAB+ aerial connector.
• Jaso FM/AM Aerial Connector.
• 22Pin Molex Connector to ISO Connector lead.

▼General features:
• User-set security code.
• Optional IR remote controller: KNA-RCDV331.
• Firmware/software update via USB.
• Installer & backup memory.
• Installation Dimensions (W×H×D): 182×112×163mm (with Sleeve).
• Operating Voltage: 14.4V (10.5 – 16 V allowable).
• Maximum Current Consumption: 15 A.
• Weight: 2,0kg.

(*) Some Features, applications and services are not available in every region.
