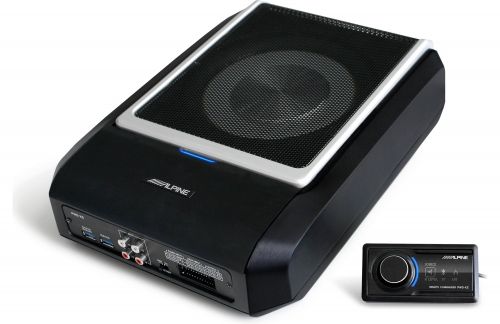

Alpine PWD-X5

This very unique sound system upgrade product includes a high-performance Digital Sound Processor (DSP), 4-channel amplifier for your front and rear door speakers, as well as an ultra-flat active subwoofer.

Brand: Alpine

Quick Buy

Just 4 fields to fill in

I agree to Privacy Policy

We will contact you to finalize the order

Add to wishlist

Send to friend

Rate this product

Compare

Technical Specifications

Power output:
Rated power: 25W*4+165W;
peak power: 50W*4+240W
Signal-to-noise ratio: ≥80dB
Bass boost: -12dB~+12dB
Frequency response: 20Hz~20KHz
Input impedance: Low-level input: 20KΩ; high-level input: 100Ω
Phase selection: 0°/180°
Remote ON: DC high-level /REM input activation
Operating temperature: -10~60°C
Storage temperature: -40~85°C
Power source: DC 14.4V (9V~16V) negative ground
Activate REM input: Options of high-level activation (H1+/H3+) and ACC activation for selection
Activate REM output: +12V activation voltage output (0.5A)
Stand-by current: 750mA
Net weight: 5.35kg
Measurements: 350mm (L) *245mm (W) *80mm (H)

Functional Parameters

Type of input signals: 4-channel high-level, 4-channel stereophonic low-level, Bluetooth
Output position: 4-channel amplifier output (4Ω 25W*4)
Output signal gain:
Master volume: 0~35;
Subwoofer volume: 0~15
Filter slope:
CH1~CH4 6 dB/Oct or 12dB/Oct
CH5 6/12/18/24dB/Oct
Q value: 0.404~28.85
Delay: 0.000~5.4ms/0.000~187cm
PreSets: 15 presets selectable

Maximum Output Power:

50 W
RMS Power per channel at 4 ohm:

25
Built-in filters:
Minimum Impedance:

4 Ohm Ohm
General Features:

Speaker level input
