Kenwood KMM-105GY

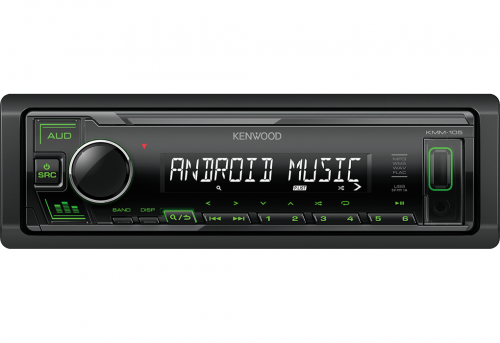

Kenwood KMM-105GY Kenwood KMM-105GY Kenwood KMM-105GY

Digital Media Receiver with Front USB & AUX Input

Price: 99.00BGN
Quantity:

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Add to wishlist

Key Features

Short body media receiver
13 Digits vertical alignment LCD display.
Green key & white display illumination.
Dual Accent Key.
FM (RDS) / AM (MW/LW) tuner (24presets).
Illuminated front USB with dust cover (1,0A).
MP3/WMA/WAV/FLAC playback.
Android music playback.
3-band EQ built-in.
1 RCA (rear/sub switchable) preout (2,5V).

General Features

DIN Size 1 DIN
Detachable Faceplate Yes
Key Illumination Green LED
Rotary Encoder & Control Knob Yes
Dual Accent Key Audio control & Easy EQ control
Back-up Memory Radio presets
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
Digital Clock (24H) Yes
Clock display when power-off default off
All-off Select (20/40/60 minutes) Yes
Built-in Connector Mitsumi, 16 pin
ISO connector Yes, Mitsumi to ISO cable
USB interface x 1 Yes, (Front)
Firmware upgreadable Yes
Mechless receiver Yes
Short body Yes

Display Features

Display Type Liquid Crystal Display (LCD)
Display Layout 13 Segments x 13 Digit
Vertical Aligment Liquid Crystal Display Yes
Display Illumination White (LED)
Dimmer Control Manual / Set by Timer
Brightness control 0 - 31 steps
Demo Mode Yes
Menu text in selectable language English(default) / Spanish / French / Russian

Cosmetics features

Dress plate Piano Black
Preset key finish Piano Black
Escutcheon finish Black Injection
Volume & operation knob or wheel Piano black with chrome finished ring
Triangle Illumination Red LED
Front terminals dust cover Yes
Key illumination Green LED
Illuminated front USB port Green LED
Brightness Control (Key) 0 - 31 step
Dimmer Control (Key) Manual / Set by Timer
Brightness zone concept 2 zone brightness control

Tuner Features

Station Select Manual / Preset
FM Reception Yes
AM (MW/LW) Reception Yes
Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
Preset memory w/o back-up power Yes
Mixed preset memory (FM & AM) 6 presets
Up/Down Seek/Scan Yes
Automatic Memory Entry (AME) Yes
FM Stereo / Mono Selector Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search Yes
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes

USB Features

USB terminal Yes, Front with dust cover
USB Type 2.0 High speed
Kenwood Music Control App for Android Yes, (with Android OS 4.1 ~ 7.0 )
MP3, WMA, WAV, FLAC playback Yes
Repeat/Scan/Random search Yes
Repeat / Random Play Yes
Direct search Yes
Resume play Yes
Time code display Yes
1A Charge Capability for Smartphone. Yes

Audio Features

Maximum Output Power 50W x 4
MOSFET Power IC Yes
Auxiliary Type Mini-jack, front panel
Pre-out 1 RCA
Pre-out Output Level 2.5V
Preout Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Tone Control / Easy EQ 3-Band, 8 Presets
Balance/Fader/Loudness Control Yes
Bass Boost Circuit Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return Yes
Parametric Equalizer + Presets 3-Bands Parametric Equalizer with 8 Presets.
Low-pass Filter Yes
Speaker Size Control Yes, Off / 5" or 4" / 6*9" or 6" / OEM
Kenwood Sound Reconstruction Yes
Drive EQ Yes

Connectivity

Front USB & AUX Input Yes
OEM Wired Remote Control ready Yes
DC-Cord Mitsumi to ISO
Power Control (P.CON) wire Yes
Amplifier pre-out 1 RCA: Rear/Subwoofer (selectable)
FM Antenna Input JASO connector

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.71μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity 2μV/75ohm (S/N 46dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 64dB
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 28.2μV
LW range: 153kHz - 279kHz (9kHz step) Yes
LW Usable Sensitivity 50μV

Codec Specs

MP3 Format MPEG 1/2 Audio Layer 3-Files
WMA Format in accordance with Windows Media Audio
WAV Format RIFF waveform Audio Format (only for LinearPCM)
FLAC Format FLAC files (up to 96kHz/24bit)

USB Specifications

USB Version compatibility USB 1.1/2.0 full speed
File System FAT 32/16/12
Maximum Supply current 1500mA
D/A Converter 24bit
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 48kHz/16bit

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 22W x 4
Preout Level 2500mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1000mV
AUX Input Impedance 30kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 12.5kHz ±8dB
Low Pass Filter Frequency (Hz) Through/85/120/160Hz
Subwoofer Level (dB) -15 dB to +15dB

Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord (Mitsumi to ISO) 15 cm

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dark Current Consumption Below 1mA
Dimensions (WxHxD) 182 x 53 x 100mm
Weight 600 gr.
Operation Temperature Range -10°C ~ 60°C
Instruction Manuals Multi-language quick Guide
  • Size:
    1-DIN
  • USB:
    Front
  • Key Illumination:
    Green
  • PreOuts:
    1
  • AUX-in:
    Front
  • Android:
    Yes
  • FLAC support:
    Yes
  • SWRC ready:
    Yes
